Product Description

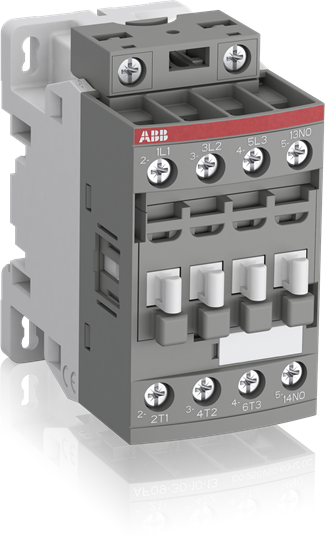

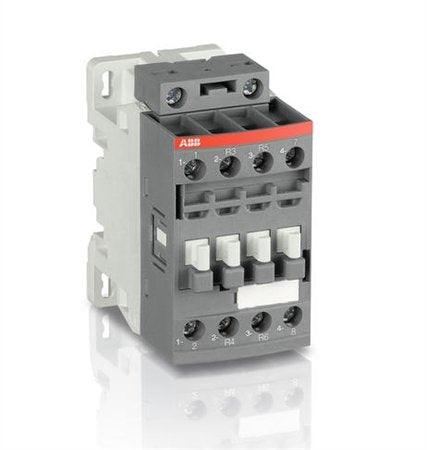

The ABB AF16-30-10-11 Magnetic Contactor is engineered for optimum performance in power circuits up to 690 V AC and 220 V DC. Its design caters to the control of 3-phase motors and non-inductive or slightly inductive loads.
- Electronic coil interface reduces energy consumption
- Wide control voltage range of 24-500 V AC/DC
- Comprehensive compliance with global standards
Product Highlights
This contactor features built-in surge protection and does not require additional suppressors. Offers extended operating limits and control voltage variations management.
Product Information
Standard Information
-
Brand: ABB
-
MPN: AF16-30-10-11
Technical Specifications
-
Coil Voltage: 24-60 V AC, 20-60 V DC
-
Contact Configuration: 3NO (Main), 1NO (Auxiliary)
-
Rated Power: 4 kW at 220/230/240 V; 7.5 kW at 380/400 V
-
Connection Type: Screw Terminal
-
Size: 45 mm Width X 86 mm Height X 77 mm Depth
-
Operating Temperature: -25 to +60 degrees C with overload relay, -40 to +70 degrees C without overload relay
-
Environmental Conditions: Certified for up to 3000 m operational altitude
