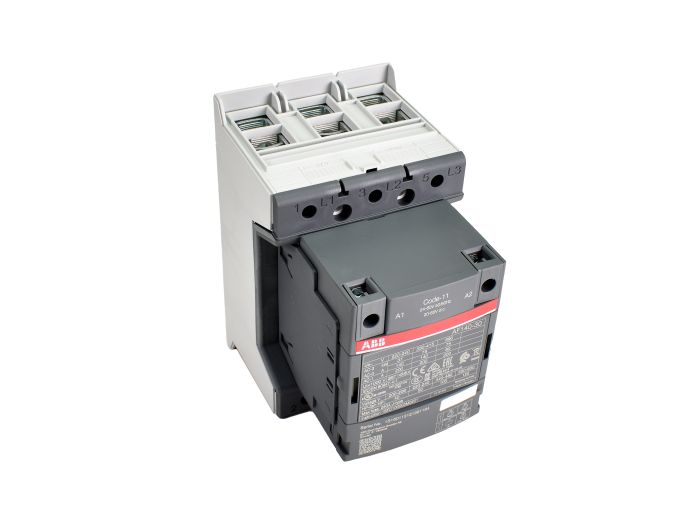

Abb AF140-30-00-11 Contactors, AF Series 24-60 VAC, 24-60 VDC

Product Description

The ABB AF140-30-00-11 contactors from the AF Series control power circuits up to 600 V AC and 240 V DC. Primarily used for controlling 3-phase motors and slightly inductive loads, these contactors feature an electronic coil interface that accepts a wide control voltage range of 24-60 VAC and 20-60 VDC. They manage large control voltage variations and have built-in surge protection.

• Coils Cover 24 V – 500 V AC and 20 V – 500 V DC
• 24 V DC Coil for Direct Control by PLC-Output > 250 mA
• Low Holding Consumption up to 1.7 W

Product Highlights

These contactors are suitable for motor starting, isolation, bypass, and distribution applications up to 690 V. They feature push-in spring terminals for fast wiring and can overbridge voltage drops and sags.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF140-30-00-11

Technical Specifications

• Manufacturer Part Number: AF140-30-00-11
• Manufacturer: ABB
• Product Series: AF
• Family Series: ABB Contactors, AF Series
• Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 24-60 V, 50 and 60 Hz, 20-60 V DC
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 24 VAC, 60 VAC, 24 VDC, 48 VDC, 60 VDC
• Coil Voltage: 24-60 VAC, 20-60 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: None
• Termination: Box Lug
• General Purpose (AC1): 200 A
• UL Motor Switching (AC3): 140 A
• Coil Power Rating: 75 kW, 100 hp, 125 hp
• Connection type: Cable Clamp
• Current Type: AC/DC
• Maximum Amperage: 200 A
• NEMA Size: Size 4
• Horsepower: 100 hp
• Item Height: 150 mm
• Item Length: 126 mm
• Item Width: 90 mm
