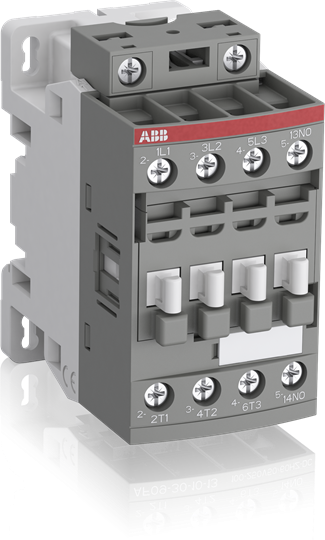

ABB AF12-30-10-14 AF12 3P CONTR, 1N

Product Description

The ABB AF12-30-10-14 is a non-reversing line contactor designed for controlling three-phase motors. It features a coil voltage range of 250 to 500 VAC/VDC and supports a maximum load current of twenty-eight amps. This contactor is suitable for applications involving non-inductive or slightly inductive loads.

• Non-reversing contactor with three poles
• Auxiliary contact configuration includes one normally open contact
• Built to operate in harsh environments with a temperature rating from minus twenty-five to sixty degrees Celsius

Product Highlights

The AF12 series contactors are compliant with international standards, providing reliable performance for controlling motors.

Product Information

Standard Information

• Brand: ABB
• MPN: AF12-30-10-14

Technical Specifications

• Voltage Rating: 690 Volt
• Amperage: 28 Amp
• Coil Voltage: 250 to 500 VAC/VDC
• Contact Configuration: 3 NO
• Dimensions: 45 mm W x 77 mm D x 86 mm H
• Operating Temperature: -25 to 60 degrees C
• Standards/Approvals: IEC 60947-1, UL 508
