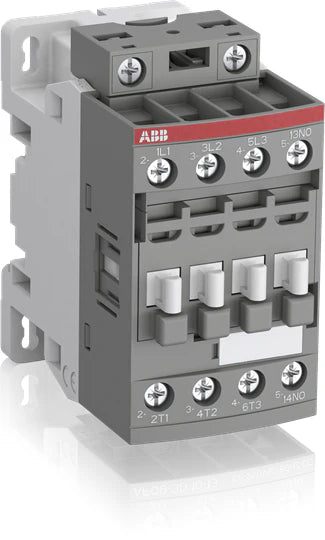

ABB AF12-30-10-11 24 to 60VAC 20 to 60VDC 28Amp 1NO 3-Pole Non-Reversing Contactor

Product Description

ABB AF12-30-10-11 contactor is designed for controlling power circuits up to six hundred ninety volts AC and two hundred twenty volts DC. This unit primarily controls three-phase motors and loads that are non-inductive or slightly inductive.

• Prevents energy losses with an electronic coil interface.
• Handles wide voltage variations globally.
• Compact size suitable for various mounting options.

Product Highlights

Ideal for industrial applications requiring reliable motor control.

Product Information

Standard Information

• Manufacturer: ABB
• Part Number: 489696

Technical Specifications

• Coil Voltage: 24 - 60 VAC, 20 - 60 VDC
• Number of Poles: 3
• Amperage Rating: 28 Amp
• Dimensions: Width 45 mm, Height 86 mm, Depth 77 mm
• Operating Temperature Range: -25 to +60 degrees Celsius
• Max Breaking Capacity: 106 A at 690 V
• Terminal Type: Screw terminals
• Insulation Voltage: 690 V
• Environmental Conditions: Storage Temperature -60 to +80 degrees Celsius
