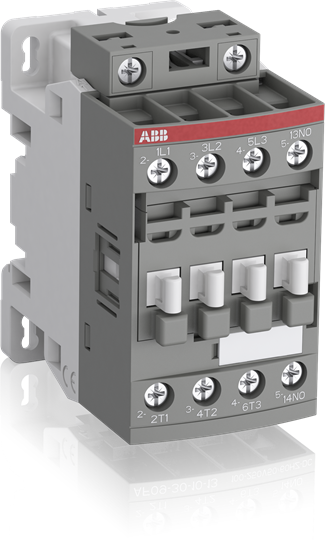

ABB AF09-30-10-13 Motor Control Contactor 100-250VAC/VDC 3-Pole 1NO Aux AF09 Series

Product Description

The ABB AF09-30-10-13 is a high-performance motor control contactor designed for industrial applications. This 3-pole, non-reversing contactor operates with a 100-250V AC/DC coil and features one normally open (NO) auxiliary contact. It is suitable for controlling 3-phase motors and various other electrical loads.

• Robust design capable of withstanding harsh conditions
• Flexible installation options including front and side mounting on DIN rails
• Efficient operation with low energy consumption

Product Highlights

Engineered for reliability, the ABB AF09 contactor facilitates efficient power distribution, ensuring operational stability in industrial settings. Its compact size allows for integration into tight spaces without sacrificing performance.

Product Information

Standard Information

• Brand: ABB
• MPN: AF09-30-10-13

Technical Specifications

• Voltage: 100 to 250V AC/DC
• Rated Current: 9A
• Power Ratings: 2.2 kW at 220/230/240 V, 4 kW at 380/400/415/440 V, 5.5 kW at 500/690 V
• Number of Poles: 3 Pole
• Temperature Range: -25 to 55 degrees Celsius
• Mounting Type: Front and Side, DIN Rail
• Terminal Type: Screw Terminals
• Coil Voltage: 100 - 250 VAC/VDC
