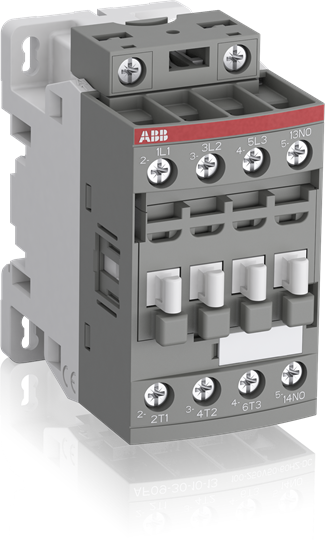

ABB AF09-30-10-11 Contactor 24 to 60 VAC 20 to 60 VDC 25 Amp 1NO

Product Description

The ABB AF09-30-10-11 3-Pole Non-Reversing Contactor offers reliable control for industrial applications. Ideal for regulating power circuits up to 690 V AC and 220 V DC, it is primarily used for managing 3-phase motors and varying power loads.

• Features an electronic coil interface that adjusts to different control voltages worldwide.
• Equipped with built-in surge protection, eliminating the need for additional devices.
• Fully compliant with industrial standards, ensuring high reliability and performance.

Product Highlights

With a coil voltage range of 24 to 60 V AC/DC, this contactor supports versatile applications, featuring easy integration and operation within existing systems.

Product Information

Standard Information

• Brand: ABB
• MPN: AF09-30-10-11

Technical Specifications

• Coil Voltage: 24 to 60 V AC, 20 to 60 V DC
• Contact Configuration: 3NO (Main), 1NO (Auxiliary)
• Connection Type: Screw Terminal
• Size: 45 mm Width x 86 mm Height x 77 mm Depth
• Operating Temperature: From -25 to +60 degrees C with thermal overload relay
• Operating Current: 25 A at 40/60 degrees C
• Environmental Conditions: Maximum operating altitude up to 3000 meters
