ABB ADR6 Blackburn Dual-Rated Single-Conductor One-Hole Mount Lug 14-6 Str

Product Description

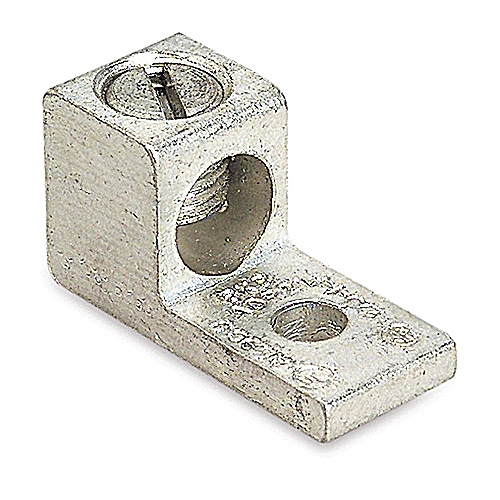

The ABB ADR6 is a dual-rated single-conductor one-hole mount lug. This product works with conductors sized fourteen to six AWG. The dimensions of this lug are one point zero eight inches in length, zero point five inches in width, and zero point four eight inches in height. The lug features a slotted screw and is tin plated for enhanced durability.

• Easy installation without special tools required.
• Compatible with both aluminum and stranded copper conductors.
• Suitable for voltage ratings up to 600 VAC.

Product Highlights

The ABB ADR6 lug provides reliable mechanical connections for electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: Dual-Rated
• Material: Aluminum
• Width: 0.5 inches
• Height: 0.48 inches
• Length: 1.08 inches
• Finish: Tin Plated
• Conductor Size: 14 to 6 AWG
• Number of Conductors: 1
• Stud Size: 1/4 inch
