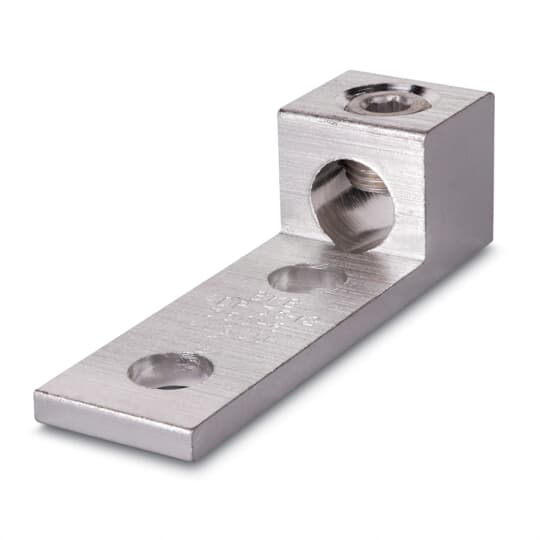

ABB ADR35-12 Blackburn ADR-ALCUL Dual Rated Mechanical Connector 6 AWG to 350 kcmil Aluminum

Product Description

The ABB ADR35-12 is a Blackburn extruded aluminum lug designed for use in electrical connections. This mechanical connector supports a conductor range from six AWG to three hundred fifty kcmil, making it suitable for various applications.

• Easy to install with no special tools needed.
• Tin plated for improved conductivity and resistance.
• Two bolt holes for secure mounting.

Product Highlights

This product offers a reliable connection for aluminum and stranded copper conductors. The dual-rated design ensures versatility in different wiring configurations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• MPN: ADR35-12
• Material: Aluminum
• Conductor Size: 6 AWG to 350 kcmil
• Finish: Tin Coated
• Length: 4-1/4 inches
• Width: 1-1/4 inches
• Height: 1-3/8 inches
• Mounting Hole Size: 1/2 inch
• Number of Conductors: 1
• Standards/Approvals: UL File No. E9809
• Tongue Size: 3 inches long by 1-1/4 inches wide by 5/16 inches thick
• Tongue Type: Straight
