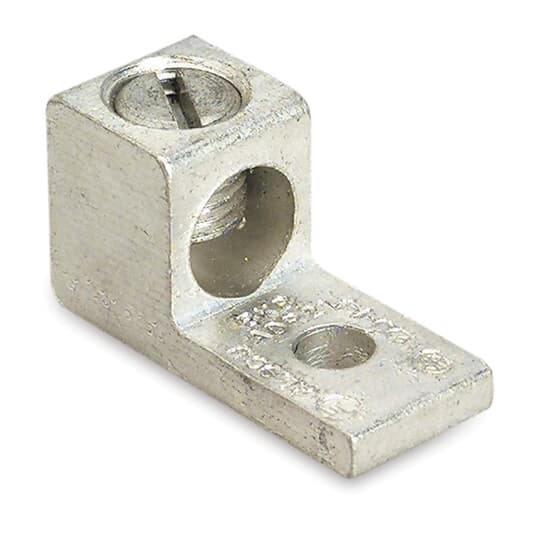

ABB ADR25 Blackburn Dual-Rated Single-Conductor One-Hole Mount Lug 6 Str - 250 kcmil

Product Description

The ABB ADR25 is a dual-rated single-conductor lug designed for use with aluminum and stranded copper conductors. Its conductor range accommodates sizes from six AWG to 250 kcmil. This product is engineered for reliability and ease of installation. The socket screw design allows for a secure connection without the need for special tools.

• Conductor size range: 6 AWG to 250 kcmil
• Tin plated for low contact resistance
• Direct installation, no special tools needed

Product Highlights

The ABB ADR25 lugs provide a solid electrical connection in various electrical applications. They are UL 486B tested and rated for safe operation in commercial and industrial environments.

Product Information

Standard Information

• Brand: ABB
• MPN: ADR25

Technical Specifications

• Material: Aluminum
• Finish: Tin Plated
• Dimensions: 2 inches length x 1 inch width x 1-1/8 inches height
• Stud Size: 5/16 inches
• Voltage Rating: 600 VAC
• Number of Conductors: 1
• Conductor Type: Aluminum/Stranded Copper
• Standards/Approvals: CSA Certified, UL File No. E9809
