ABB ADR11 Blackburn ADR11 Dual-Rated Single-Conductor, One-Hole Mount Lug, 14 - 1/0 Str

Product Description

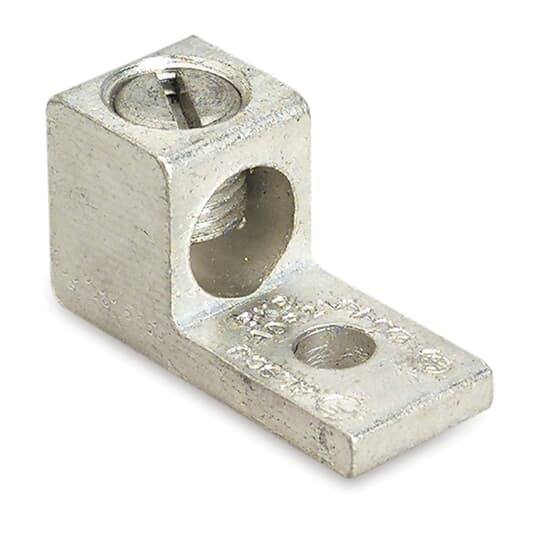

The Blackburn ADR11 from ABB is a dual-rated single-conductor lug designed for various electrical applications. It accommodates conductors ranging from fourteen to one/zero American Wire Gauge. This equipment features a one-hole mount for simple attachment and secure fastening in electrical installations.

• Dual-rated for aluminum and copper conductors
• UL 486B tested for safety and compliance
• Tin plated to reduce contact resistance

Product Highlights

This lug efficiently handles electrical connections and is suitable for both residential and commercial wiring projects.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: Type ADR-ALCUL Dual-Rated
• Material: Aluminum
• Finish: Tin Plated
• Dimensions: 1-15/32 inches Length x 5/8 inches Width x 25/32 inches Height
• Voltage Rating: 600 VAC
• Conductor Size: 14 to 1/0 AWG
• Number of Bolt Holes: 1
• Stud Size: 1/4 inches
