ABB ADR11 Blackburn #1/0 STR thru #14 AWG Aluminum Lug Terminal

Product Description

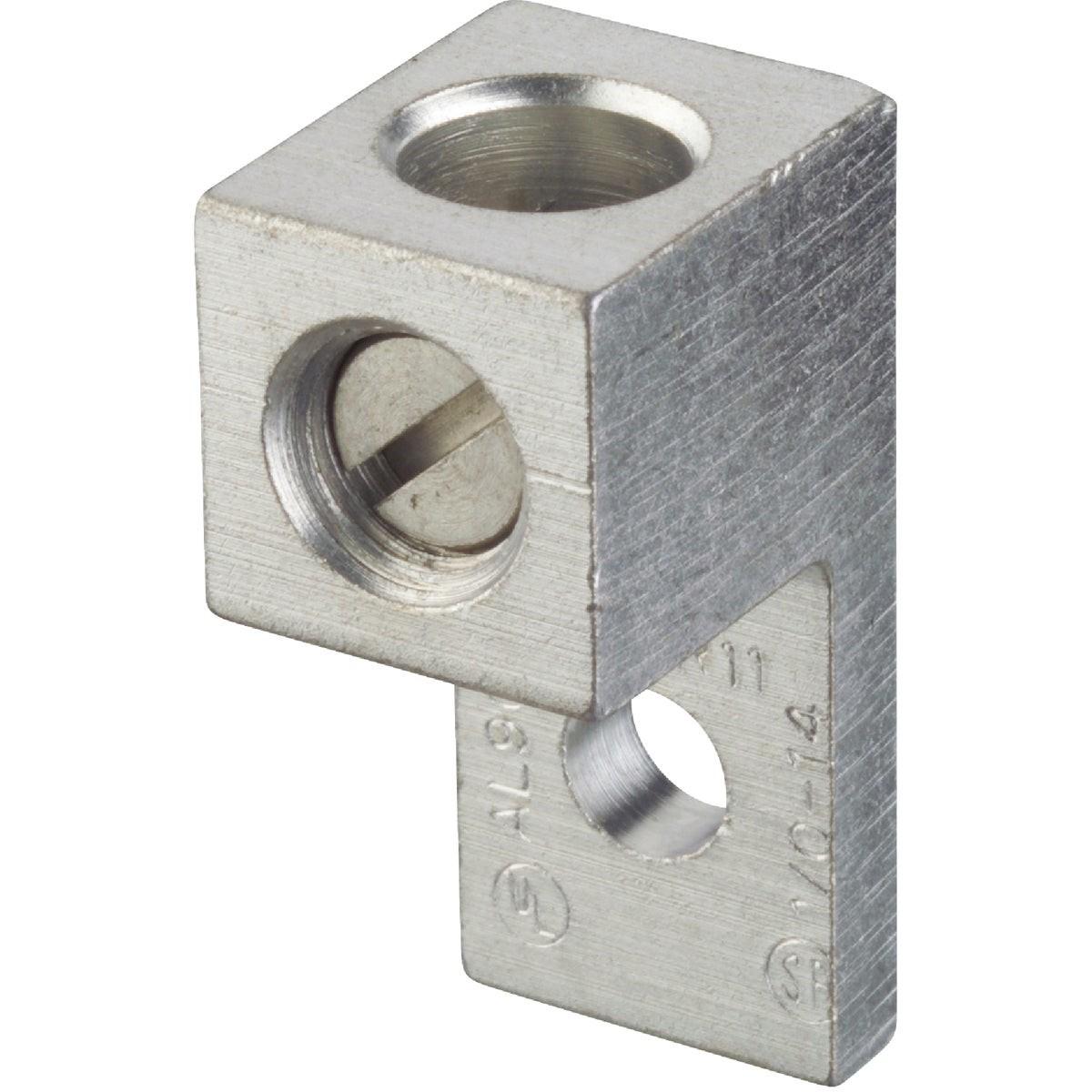

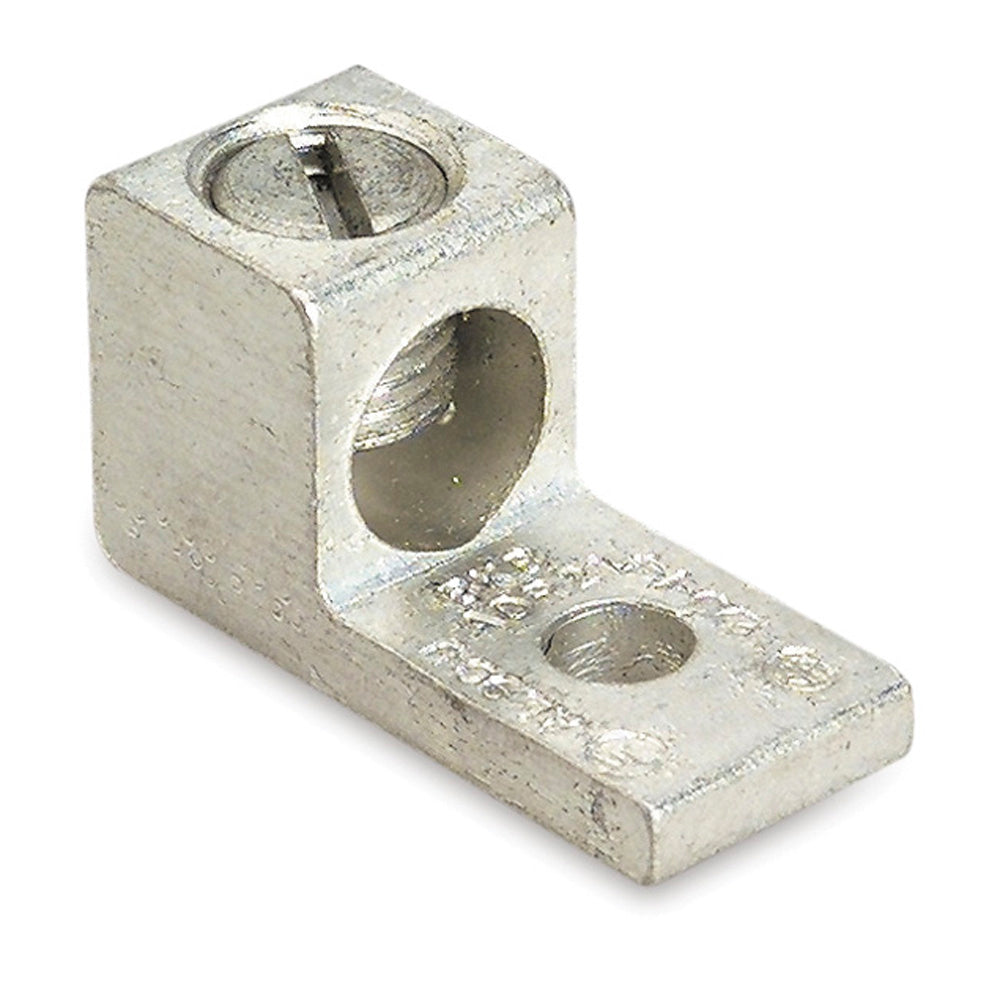

The ABB ADR11 is a Blackburn aluminum lug terminal designed for use with conductors ranging from fourteen to one-aught stranded copper or aluminum. This terminal is ideal for electrical connections in various installations. It can accommodate a stud size of one-fourth inch and features a slotted screw for attachment.

• Designed for 14 AWG to 1/0 AWG conductors
• Made from durable aluminum and tin plated for reduced resistance
• Simple installation with no special tools required

Product Highlights

This lug terminal is suitable for both residential and commercial applications, allowing for efficient electrical connections. The dual-rated feature permits use with aluminum and stranded copper conductors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn

Technical Specifications

• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Aluminum/Stranded Copper
• Dimensions: 1-15/32 inches long x 5/8 inches wide x 25/32 inches high
• Finish: Tin Plated
• Stud Size: 1/4 inch
• Number of Bolt Holes: 1
• Specifications: 1-Conductor, Slotted Screw
• Voltage Rating: 600 VAC
