Product Description

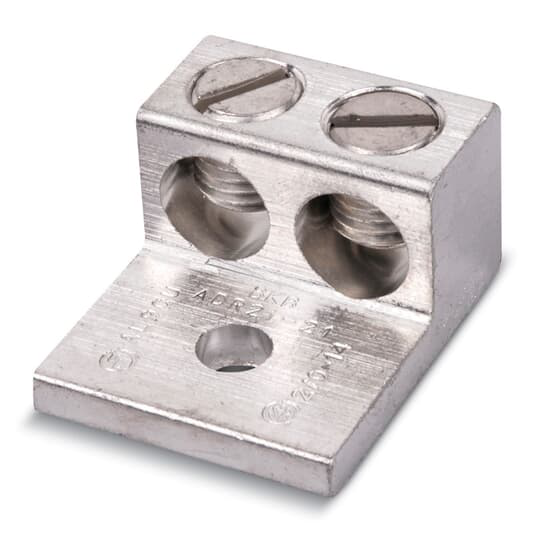

ABB ADR11-21 is a dual-rated mechanical connector designed for aluminum and copper conductors. This product accommodates wire sizes from fourteen American wire gauge (AWG) to one-ought AWG. The connector features a one-hole mount design for easy installation. It is constructed from aluminum and plated with tin for enhanced conductivity.
- UL 486B tested and AL9CU rated
- Designed for ease of installation without special tools
- Suitable for two conductors
Product Highlights
This connector ensures reliable electrical connections for a variety of applications, making it ideal for both residential and commercial use.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Blackburn / Thomas & Betts
Technical Specifications
-
Conductor Size: 14 to 1/0 AWG
-
Material: Aluminum
-
Finish: Tin Plated
-
Dimensions: 1-15/32 inch length x 1-7/32 inch width x 25/32 inch height
-
Stud Size: 1/4 inch
-
Number of Bolt Holes: 1
-
Standards/Approvals: CSA Certified, UL File No. E9809
-
Specifications: 2-Conductor, 35/64 inch hole spacing
