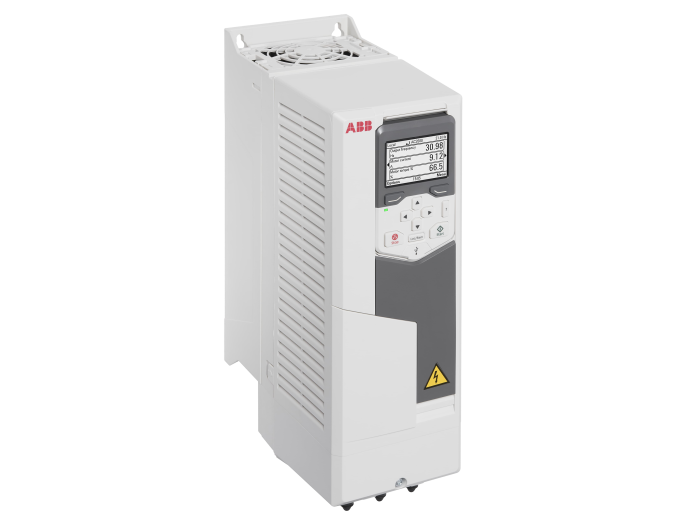

Abb ACS580-01-07A5-2 AC Drive 2 hp

Product Description

The ABB ACS580-01-07A5-2 is a compact alternating current drive designed for pumps, fans, compressors, conveyors, and mixers. It features embedded adaptive programming for easy integration into automated systems and can function with AC induction and PM motors. Suitable for various commercial applications.

• Built for Harsh Conditions
• Intuitive User Interface
• Reliable and Safe

Product Highlights

This AC drive features sensorless vector control, dynamic and flux braking, and includes STO. It supports open loop vector control and is suitable for AC induction and PM motors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS580-01-07A5-2

Technical Specifications

• Manufacturer Part Number: ACS580-01-07A5-2
• Manufacturer: ABB
• Product Series: ACS580
• Family Series: ABB Drives, ACS580 Series
• Description: ACS580 AC Drive, 3-208-240V In, 2HP, 7.5A, Type 1, 1.1 overload, Assistant Standard, HxWxD 14.69x4.8x8.78 in, Wall
• Phase: 3
• HP (Variable Torque Rating): 2 hp
• Amps (Variable Torque Rating): 7.5 A
• Brake: Dynamic Braking, Flux Braking
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• NEMA Rating: NEMA 1
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Mounting: Panel
• Nominal Input Voltage: 208 VAC, 240 VAC
• AC Voltage: 208-240 VAC
• Frame Size: R1
• Protection Rating: IP21
• Dynamic Braking: Included
• Height: 14.69 "
• Width: 4.92 "
• Depth: 8.78 "
• Comments: Includes STO, Sensorless Vector Control For AC Induction And PM Motors, Adaptive Programming
