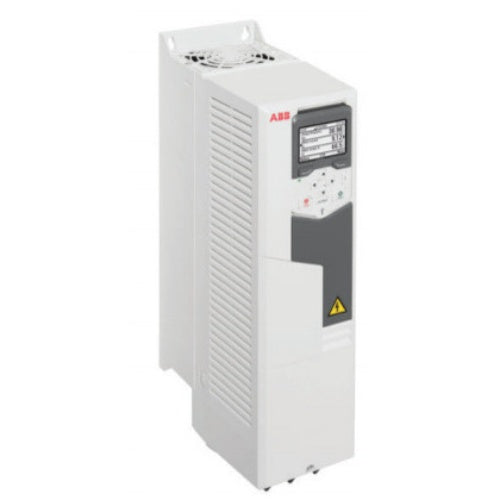

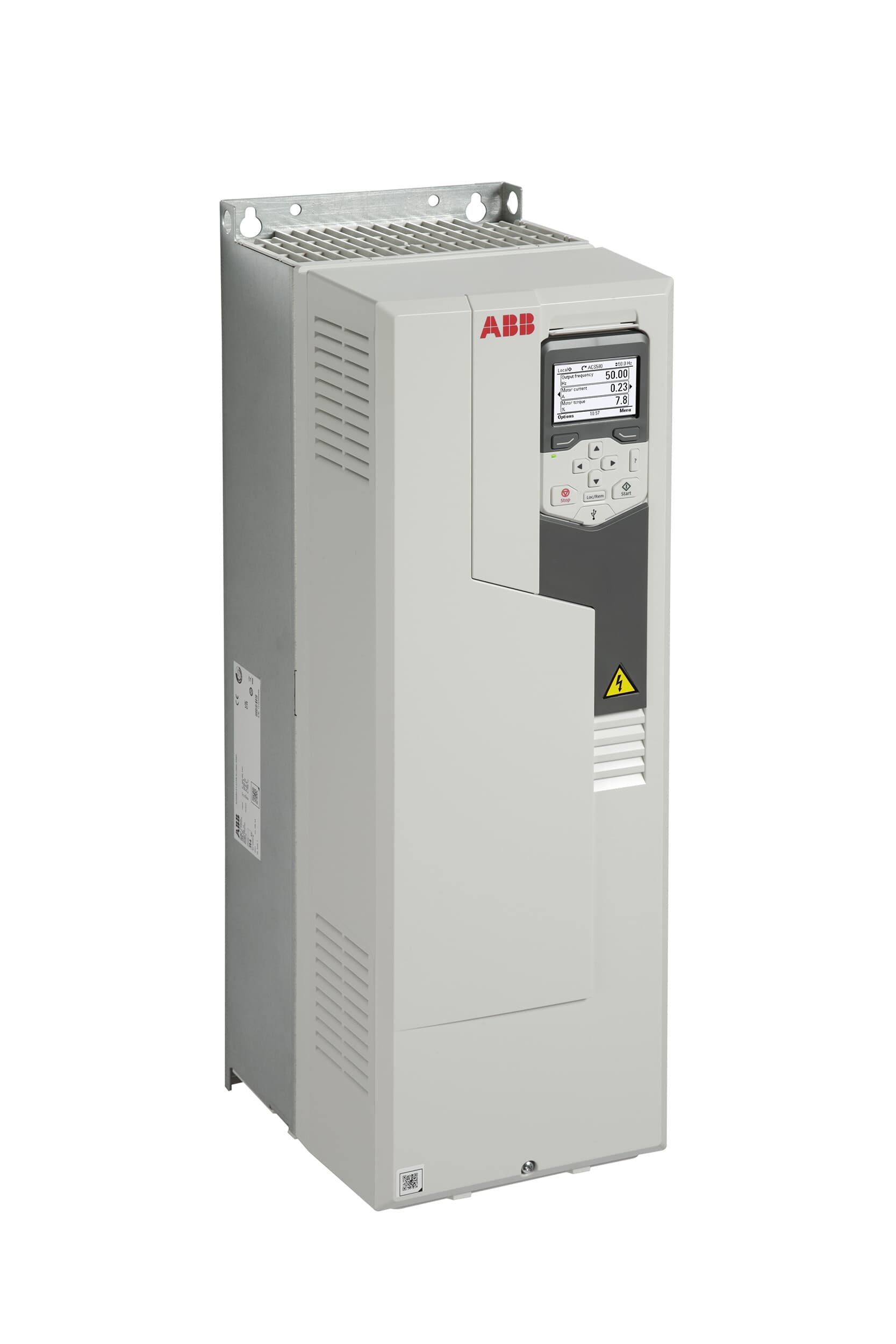

Abb ACS580-01-075A-2 LV AC General Purpose Drive 25 Hp (Wall-Mount) ACS580-01-075A-2

Product Description

Abb ACS580-01-075A-2 is a low-voltage AC general purpose wall-mounted drive from ABB, rated 25 Hp (74.8 A) at 240 V with UL Pld listing. The three-phase variable frequency drive provides motor speed and torque control for applications such as pumps, fans, compressors, conveyors and mixers. It features sensorless vector control, an integrated keypad operator interface, and an R4 frame with NEMA 1 / IP21 enclosure.

• Rated 25 Hp (variable torque) and 74.8 A nominal current at 240 V; three-phase operation
• Wall-mounted R4 frame, NEMA 1 / IP21 enclosure; net weight 42 lbs; compact dimensions
• Sensorless vector motor control, keypad operator control, STO included, optional external dynamic braking

Product Highlights

Low-voltage wall-mounted VFD, 25 Hp (74.8 A) at 240 V, three-phase, sensorless vector control, NEMA 1 / IP21, frame R4

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS580-01-075A-2

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS580-01-075A-2
• Product ID: 3AXD50000270903
• Product Type: LV AC general purpose wall-mounted drive
• Series: ACS580
• Rated Power (Hp): 25 Hp
• Power Rating (kW): 18.5 kW
• Phase: 3
• Input Voltage: 240 V AC
• Output Current (Rated): 74.8 A
• Constant Torque Horsepower: 20 Hp
• Constant Torque Current: 59.4 A
• Variable Torque Horsepower: 25 Hp
• Variable Torque Current: 74.8 A
• Enclosure Rating: NEMA 1 / IP21
• Frame Size: R4
• Mounting Type: Wall-mounted (panel)
• Motor Control Type: Open loop vector (sensorless vector)
• Operator Controls: Keypad included
• STO (Safe Torque Off): Included
• Dynamic Braking: Optional (external)
• Cooling: Variable-speed cooling fan
• Max Frequency: 500 Hz
• Dimensions (H x W x D): 25.04 in x 7.99 in x 10.12 in
• Net Weight: 42 lbs
• UL Rating: Pld
• Category: Low voltage AC drives / General purpose drives
