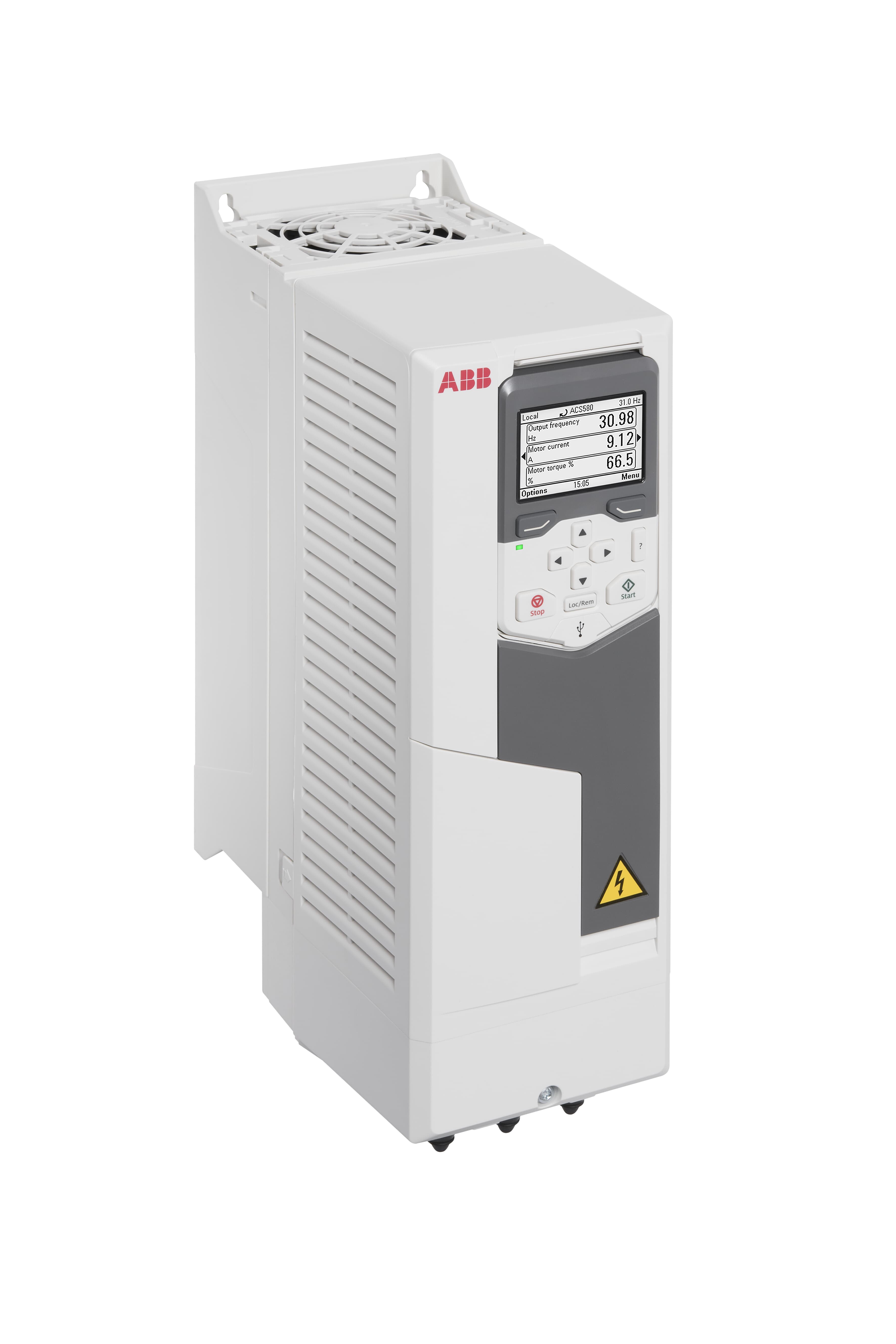

Abb ACS580-01-017A-2 ACS580 Series AC Drive 4.0 kW (Wall Mount)

Product Description

Abb ACS580-01-017A-2 is an ACS580 series industrial AC drive with a rated power of 4.0 kW and a rated current of 16.9 A. The three-phase low-voltage drive is intended for general-purpose motor control and supports sensorless vector (open loop) control, dynamic and flux braking, and Safe Torque Off (STO). The unit is wall-mountable with an included keypad operator interface and compact dimensions.

• Sensorless vector (open loop) motor control for AC induction and permanent magnet motors
• Dynamic and flux braking with Safe Torque Off (STO) and keypad operator interface
• Wall-mounted/panel-compatible compact enclosure, HxWxD 14.69 x 4.92 x 8.78 in

Product Highlights

General-purpose 3-phase AC drive for pumps, fans, conveyors and other industrial motor applications

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS580-01-017A-2

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS580-01-017A-2
• Product Series: ACS580
• Product Family: ACS580 (AC drive)
• Rated Power: 4.0 kW
• Rated Current: 16.9 A
• Input Voltage: 240 VAC
• Phase: 3
• Mounting Type: Wall-mounted (panel mountable)
• HP (Variable Torque Rating): 5 Hp
• HP (Constant Torque Rating): 3 Hp
• Amps (Variable Torque Rating): 16.7 A
• Amps (Constant Torque Rating): 10.6 A
• Motor Control: Open loop vector (sensorless vector)
• Braking: Dynamic braking, Flux braking
• Safety Listing: UL Pld
• Protection Rating: IP21
• NEMA Rating: NEMA 1
• Operator Interface: Keypad included
• Features: Safe Torque Off (STO), adaptive embedded programming
• Frame Size: R1
• Dimensions (HxWxD): 14.69 x 4.92 x 8.78 in
• Net Weight: 11 lbs
• Product Code: 3AXD50000270958
• Product Page: http://new.abb.com/products/3AXD50000215270/acs580-01-017a-2
