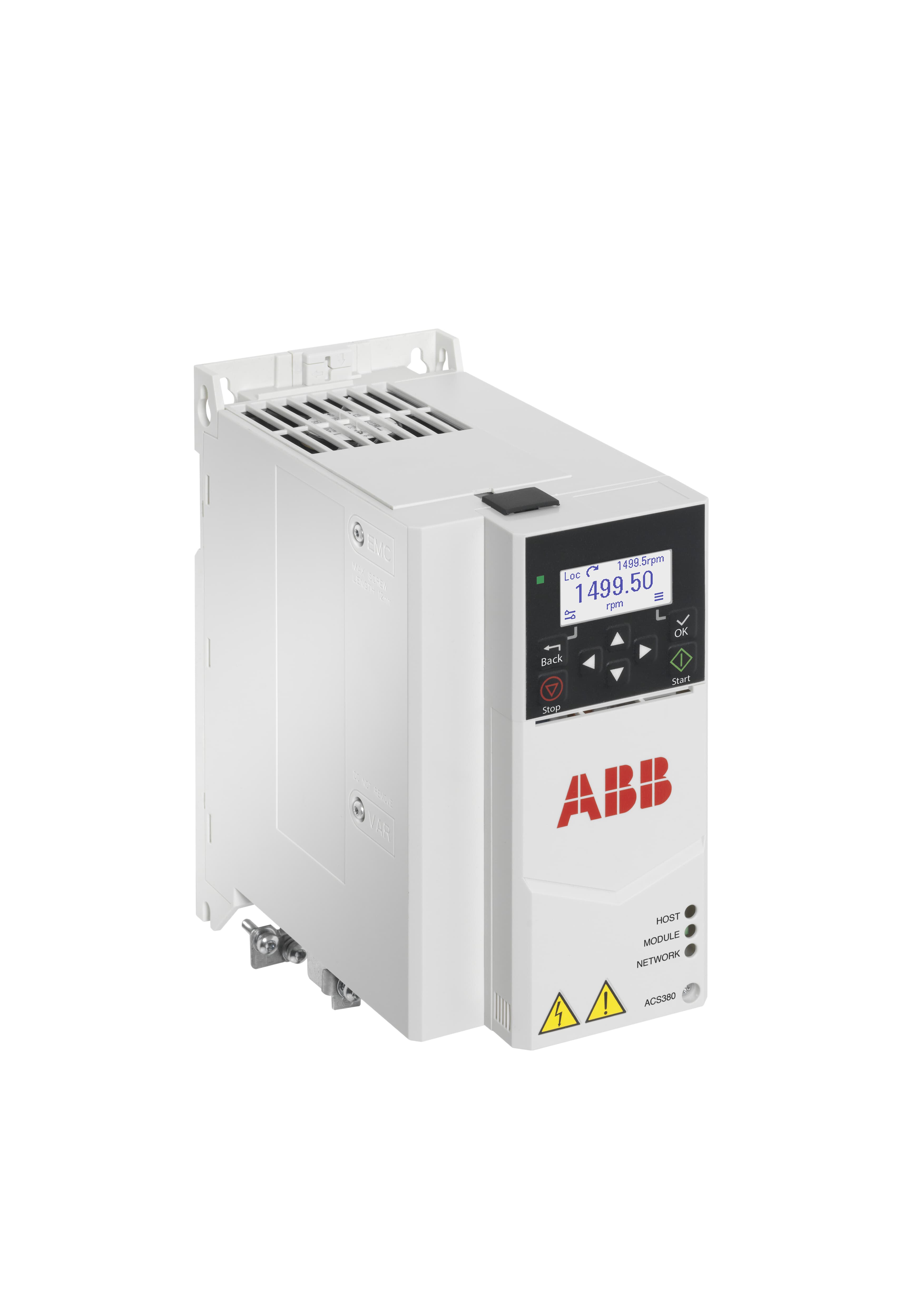

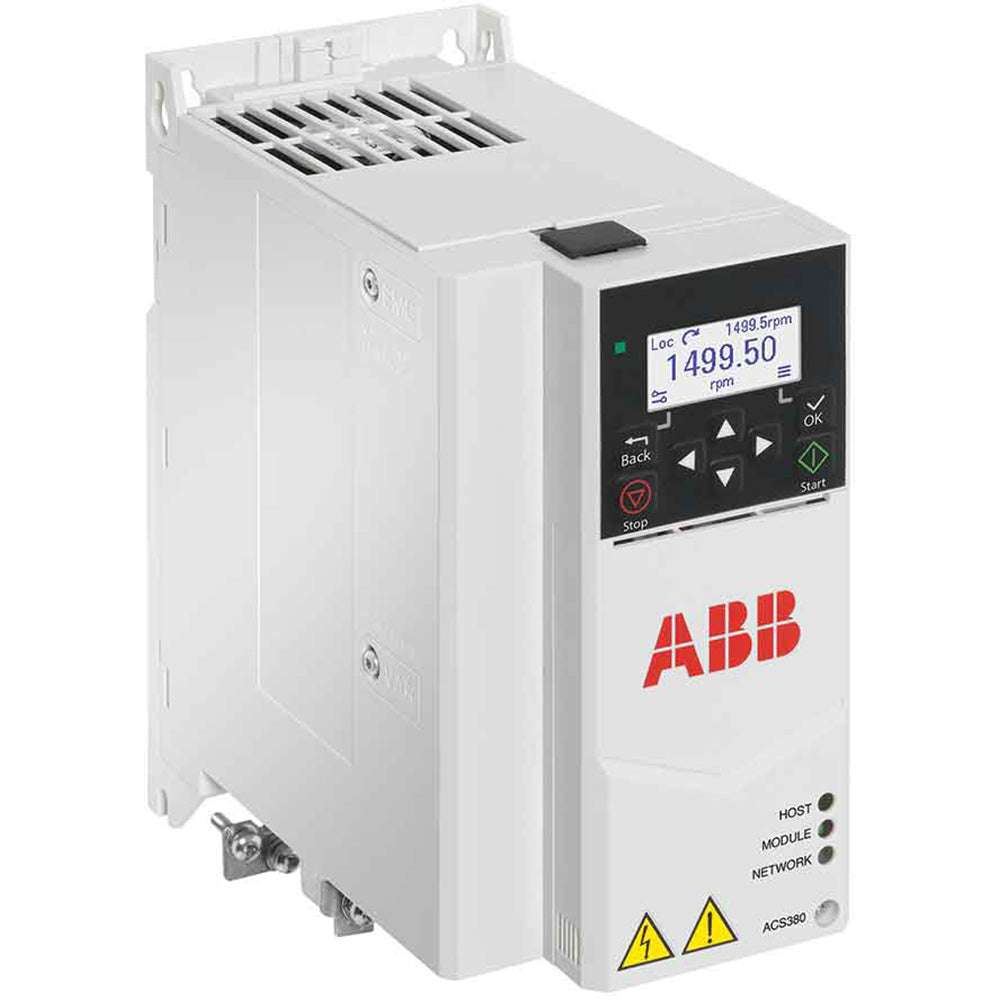

Abb ACS380-040S-12A6-4 machinery drive 5.5 kW (LV module) 3AUA0000206870

Product Description

Abb ACS380-040S-12A6-4 is a machinery drive designed for integration into machines and automation systems, providing motor control and integrated functional safety. The drive is IEC rated 5.5 kW at 12.6 A (400 V) and UL rated 7.5 hp at 11 A (480 V). It supports PROFIsafe over PROFINET, offers adaptive programming for application-specific logic, and provides sensorless open-loop vector control with dynamic and flux braking for conveyors, mixers, extruders and textile machinery.

• IEC rated 5.5 kW, 12.6 A (400 V); UL rated 7.5 hp, 11 A (480 V).
• Integrated functional safety with PROFIsafe over PROFINET for safe motor stop.
• Adaptive programming, sensorless open-loop vector motor control, dynamic and flux braking; panel-mount module with built-in operator controls.

Product Highlights

LV AC machinery drive module with integrated PROFIsafe safety, adaptive programming and sensorless vector motor control.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-12A6-4

Technical Specifications

• Brand: Abb
• MPN: ACS380-040S-12A6-4
• Alternate MPN: 3AUA0000206870
• Product ID: 3AXD50000031893
• Product family: ACS380
• Type: LV AC machinery drive module / variable frequency drive (VFD)
• IEC Rated Power: 5.5 kW
• IEC Rated Current: 12.6 A
• IEC Rated Voltage: 400 V
• UL Rated Power: 7.5 hp
• UL Rated Current: 11 A
• UL Rated Voltage: 480 V
• Phase: 3
• Nominal Input Voltage: 380-480 VAC
• IP Rating: IP20
• Mounting: Panel
• Motor Control: Sensorless open-loop vector (optional closed-loop)
• Brake: Dynamic braking, flux braking
• Communication: PROFINET (supports PROFIsafe)
• Safety features: Integrated functional safety; PROFIsafe support
• Customization: Adaptive programming
• Operator Controls: Built-in
• Typical applications: Mixers, conveyors, EOT and tower cranes, extruders, textile machinery
• Frame Size: R2
• Dimensions (HxWxD): 6.69 x 3.74 x 7.52 in
• Net Weight: 4.395 lbs
• Series: ACS380
