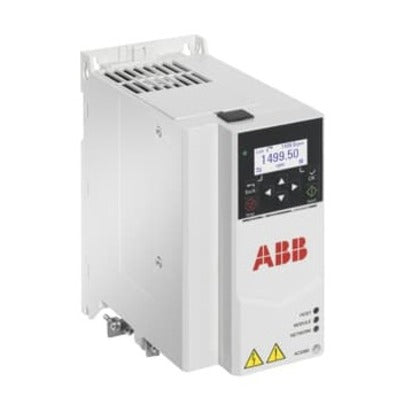

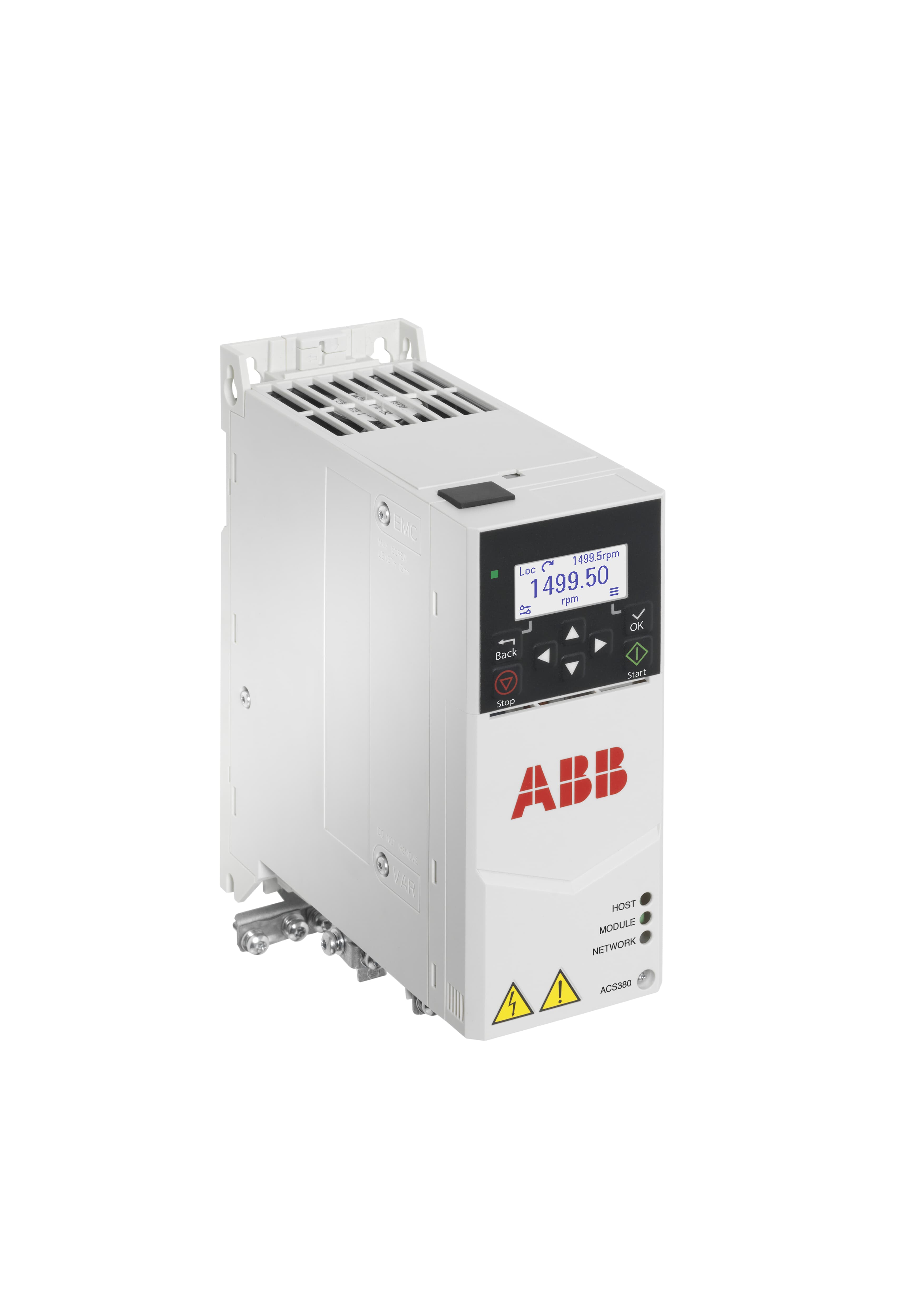

Abb ACS380-040S-09A8-2 Lv Ac Machinery Drive Module 2.2 kW (Module) 3AXD50000161904

Product Description

ABB ACS380-040S-09A8-2 is a low-voltage AC machinery drive module rated IEC Pn 2.2 kW (9.8 A) at 230 V and UL Pld 2 Hp (9.3 A) at 208 V for low-voltage machinery drive applications. The unit is part of the ACS380 series and is referenced under catalog number 3AXD50000161904. It provides motor speed and torque control for machine integration and automation systems.

• IEC rating: 2.2 kW, 9.8 A at 230 V
• UL rating: 2 Hp, 9.3 A at 208 V
• Part of ACS380 series; catalog reference 3AXD50000161904; intended for low-voltage machinery drive applications

Product Highlights

Low-voltage AC machinery drive module, IEC 2.2 kW / UL 2 Hp ratings, ACS380 series, catalog 3AXD50000161904

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-09A8-2

Technical Specifications

• Manufacturer: ABB
• MPN: ACS380-040S-09A8-2
• Product Type: LV AC machinery drive module
• Series: ACS380
• Catalog Number: 3AXD50000161904
• Additional Catalog / Material Number: 3AXD50000469789
• IEC Power (Pn): 2.2 kW
• IEC Rated Current: 9.8 A
• IEC Voltage: 230 V
• UL Power (Pld): 2 Hp
• UL Rated Current: 9.3 A
• UL Voltage: 208 V
• Nominal Input Voltage / Voltage Range: 200-240 VAC
• Input Phase: 3-Phase
• Output Phase: 3-Phase
• Enclosure Rating: IP20 (Open)
• Enclosure Type: Type OPEN
• Mounting: Module
• Frame Size: R1
• Overload Rating: 1.5x
• Control Panel: Integrated / Advanced
• Dimensions: 8.8 x 2.8 x 6.9 in
• Weight: 3.5 lbs
• Braking: Dynamic braking included
• Certifications: UL
• Typical Applications: Machine building, material handling, mixers, conveyors, extruders, textile machinery
