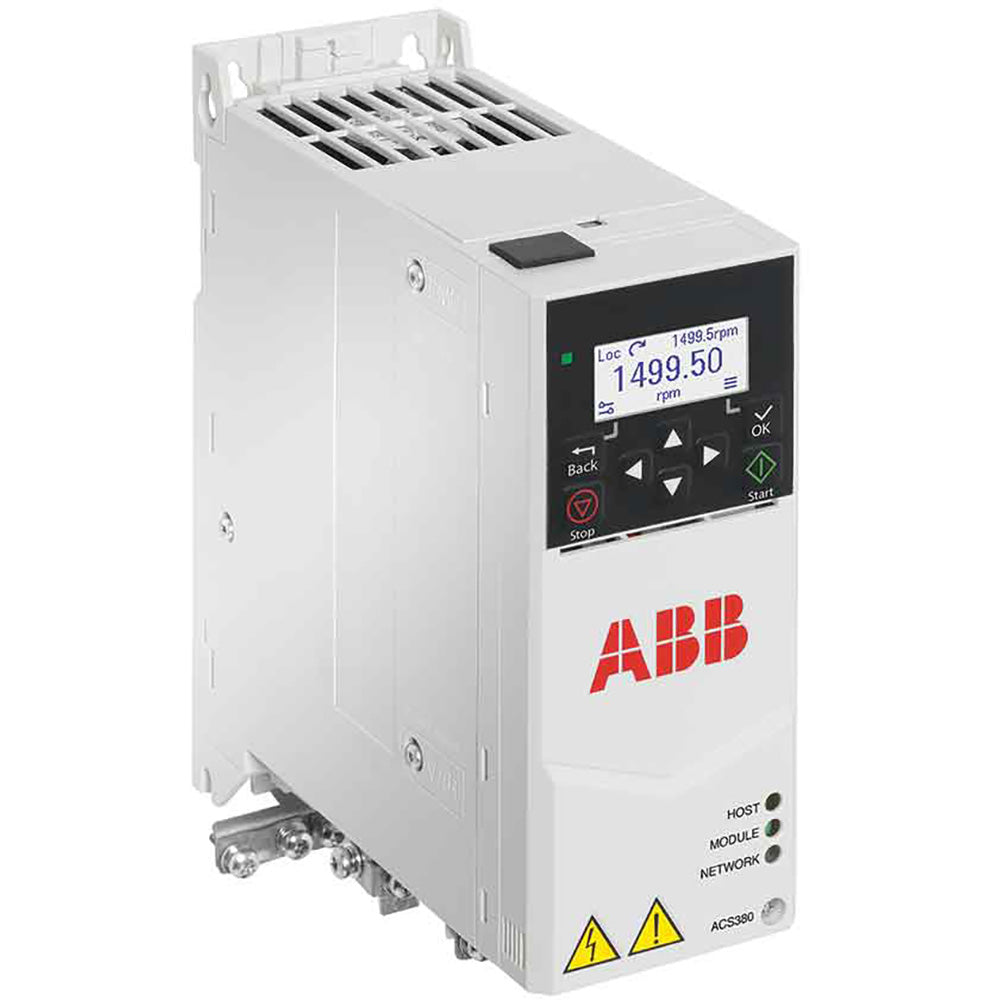

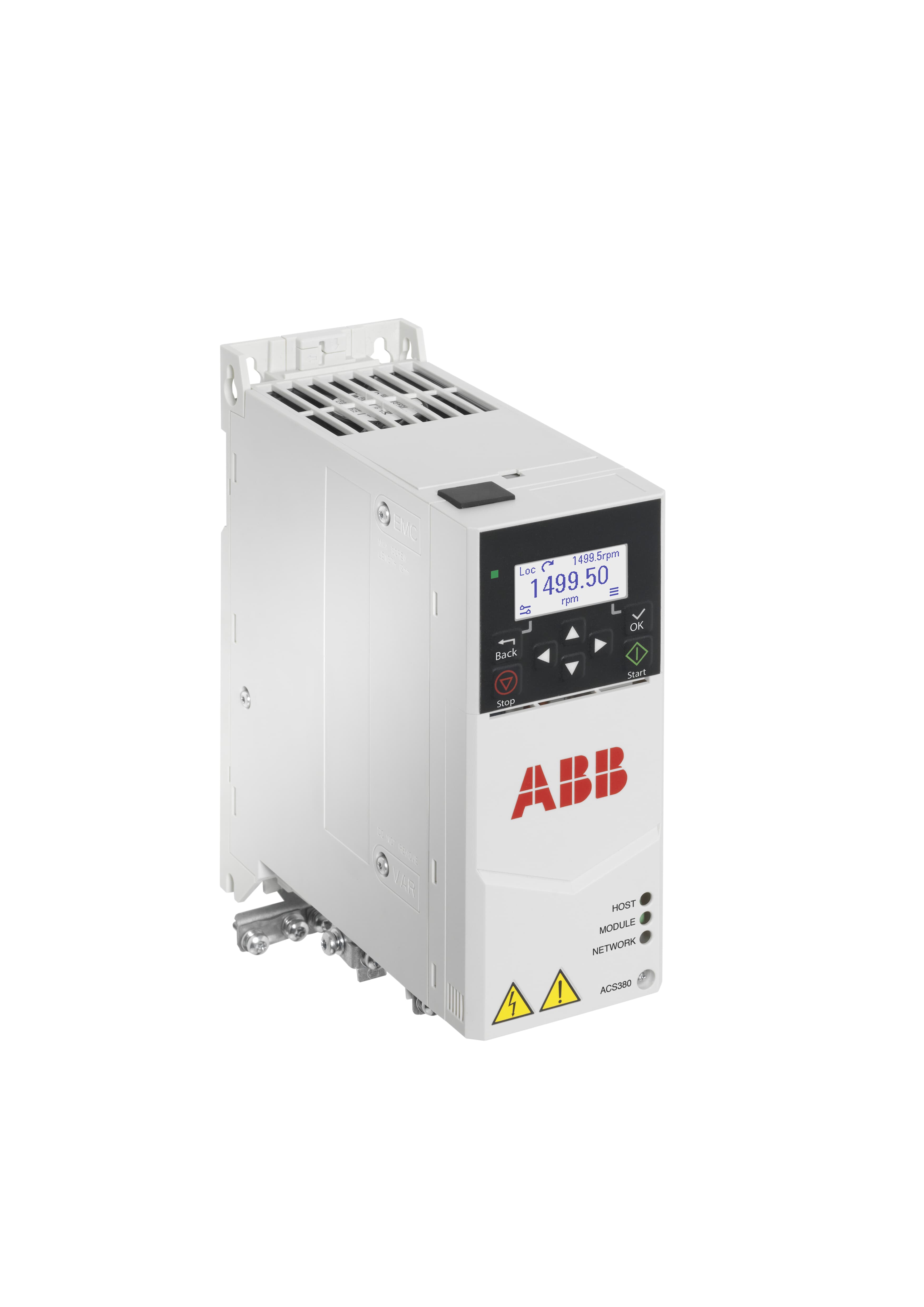

Abb ACS380-040S-09A4-4 LV AC machinery drive module 4 kW (Module) 3AUA0000206869

Product Description

Abb ACS380-040S-09A4-4 is an ABB low-voltage AC machinery drive module rated IEC 4 kW, 9.4 A at 400 V and UL 5 hp, 7.6 A at 480 V. This three-phase compact AC drive supports 380–480 VAC input, panel/module mounting and IP20 protection. It provides sensorless vector motor control, built-in operator controls, and dynamic/flux braking, with embedded connectivity and adaptive programming for machine integration in conveyors, mixers, cranes, extruders, and textile equipment.

• IEC rating: 4 kW, 9.4 A at 400 V; UL rating: 5 hp, 7.6 A at 480 V
• Three-phase drive with 380–480 VAC input, panel/module mounting and IP20 enclosure
• Sensorless vector motor control, built-in operator controls, dynamic and flux braking, PROFIsafe over PROFINET and adaptive programming

Product Highlights

Three-phase LV AC drive, IEC 4 kW / UL 5 hp, sensorless vector control, IP20 panel/module mounting

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-09A4-4

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-09A4-4
• Alternate Manufacturer Part Number: 3AUA0000206869
• Product Code: 3AXD50000031892
• Product Type: LV AC machinery drive module
• Series: ACS380
• Input Voltage: 380-480 VAC (nominal)
• IEC Voltage: 400 V
• UL Voltage: 480 V
• Phase: 3
• IEC Power: 4 kW
• UL Power: 5 hp
• IEC Current: 9.4 A
• UL Current: 7.6 A
• Power Rating (kW): 4 kW
• Horsepower Rating: 5 hp
• Motor Control: Sensorless vector (open loop)
• Brake: Dynamic braking, Flux braking
• Operator Controls: Built-in
• Safety Interface: PROFIsafe over PROFINET
• Software: Adaptive programming (customizable)
• Mounting Type: Panel / Module
• Protection Rating: IP20
• Frame Size: R1
• Dimensions: 8.66 x 2.76 x 6.85 in
• Net Weight: 3.445 lbs
