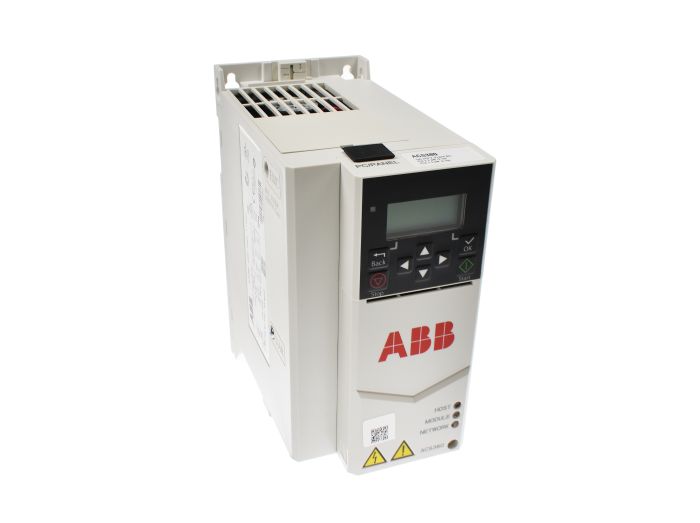

Abb ACS380-040S-03A3-4 Machinery drive 1 hp (R1)

Product Description

The ABB ACS380-040S-03A3-4 is a machinery drive designed for integration into machines and automation systems, offering motor control, safety integration and customizable application logic. It supports 380-480 VAC input, module/panel mounting in an IP20 open enclosure, and includes integrated operator controls. The drive provides integrated functional safety via PROFIsafe over PROFINET, adaptive programming, open-loop vector (sensorless) motor control and dynamic and flux braking for industrial equipment such as mixers, conveyors and extruders.

• Integrated functional safety; supports PROFIsafe over PROFINET
• Input 380-480 VAC (nominal 480 VAC); 1-phase input, 3-phase output; rated 1 hp, 2.1 A (constant)
• Module/panel mounting, IP20 (Type OPEN) enclosure; integrated operator controls; dynamic and flux braking; adaptive programming

Product Highlights

Machinery drive with integrated PROFIsafe, adaptive programming and open-loop vector motor control

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-03A3-4
• Country of Origin: United States

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-03A3-4
• Product Type: Machinery drive (ACS380 series)
• Product Family: ACS380
• Input Voltage: 380-480 VAC (nominal 480 VAC)
• Input Phase: 1-Phase
• Output Phase: 3-Phase
• Rated Power: 1 hp (constant torque); 1.5 hp (variable torque)
• Output Current: 2.1 A (constant); 3 A (variable)
• Enclosure Rating: IP20
• Enclosure Type: Type OPEN
• Overload Rating: 1.5
• Mounting Type: Module / Panel
• Frame Size: R1
• Operator Controls: Integrated (built-in)
• Motor Control: Open-loop vector (sensorless); optional closed-loop
• Braking: Dynamic braking; Flux braking
• Communications: PROFINET (supports PROFIsafe)
• Functional Safety: Integrated functional safety; supports PROFIsafe over PROFINET
• Software: Customizable software with adaptive programming; PID features; pre-configured application macros
• Typical Applications: Mixers; Conveyors; EOT and tower cranes; Extruders; Textile machinery
• Dimensions: 8.8 x 2.8 x 6.9 in
• Net Weight: 3.225 lbs
• Material Number: 3AUA0000206865
• Condition: New
• Frequency: 50/60 Hz
