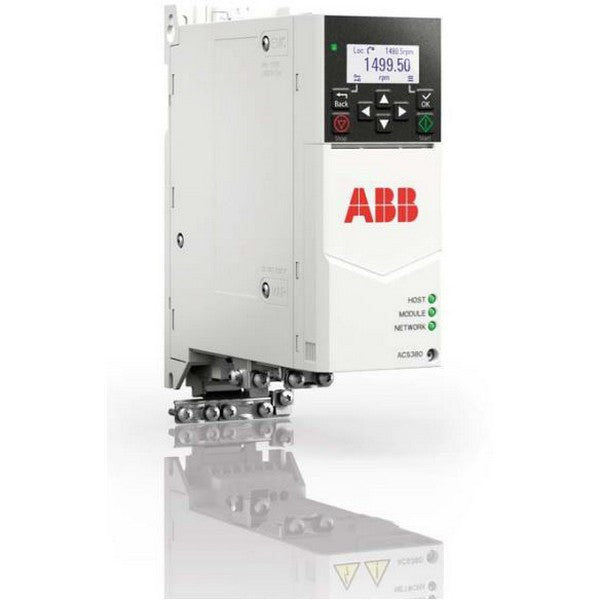

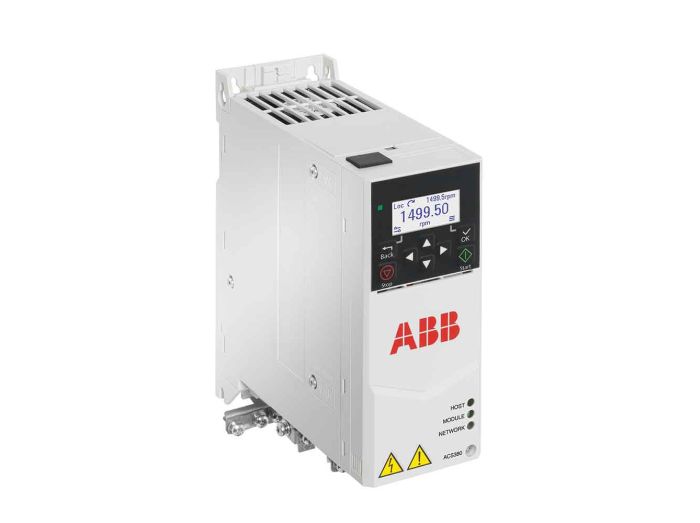

Abb ACS380-040S-02A4-2 ACS380 Machinery Drive 0.5 HP (Frame R1) ACS380040S02A42

Product Description

ABB ACS380-040S-02A4-2 is an ACS380 series machinery drive for three-phase 200–240 VAC systems, providing up to 0.5 HP output with a nominal rated current near 2.3 A. The Frame R1 unit has IP20/NEMA 1 protection, integrated functional safety (PROFIsafe over PROFINET and Safe Torque Off), built-in operator controls, and a braking chopper for dynamic braking. It supports sensorless vector motor control and adaptive programming for machine integration.

• Integrated functional safety: PROFIsafe over PROFINET and Safe Torque Off (STO)
• Electrical: 200–240 VAC three-phase input, 0.5 HP (≈0.37 kW) output, ~2.3 A rated current; Frame R1; IP20/NEMA 1
• Motor/control: sensorless vector (open loop), built-in operator controls, dynamic/flux braking, Modbus RTU and PROFINET communications

Product Highlights

Compact ACS380 series 3-phase drive, 200–240 VAC, 0.5 HP, Frame R1, IP20, PROFIsafe/PROFINET and Modbus RTU, sensorless vector control

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-02A4-2

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS380-040S-02A4-2
• Product Series: ACS380
• Product Type: Machinery drive / AC variable frequency drive
• Input Voltage: 200-240 VAC
• Nominal Input Voltage: 208 VAC, 240 VAC
• Input Phase: 3-phase
• Output Phase: 3-phase
• Rated Power (HP): 0.5 HP (variable torque)
• Rated Power (kW): 0.37 kW (nominal at 230 VAC)
• Rated Current: 2.3 A (variable torque, 230 VAC); 1.8 A (constant torque)
• Frame Size: R1
• Protection Rating: IP20 (NEMA 1)
• Mounting Type: Panel / Surface / Wall
• Communications: PROFINET (supports PROFIsafe); Modbus RTU
• Functional Safety: Integrated functional safety; PROFIsafe over PROFINET; Safe Torque Off (STO)
• Brake: Dynamic braking; braking chopper; flux braking
• Motor Control: Open loop vector (sensorless vector); supports induction, permanent magnet, and synchronous reluctance motors
• Software: Adaptive programming; pre-configured application macros
• Network Frequency: 50-60 Hz
• Ambient Operating Temperature: -10 to +50 °C
• Ambient Storage Temperature: -40 to +70 °C
• Dimensions (HxWxD): 6.69 x 2.76 x 7.52 in
• Protection / Enclosure Type: NEMA 1 (IP20)
• Net Weight: 3.5 lbs
• Applications: Mixers, conveyors, EOT and tower cranes, extruders, textile machinery, material handling
• Order Code / Manufacturer SKU: 3AXD50000469734
• Equivalent Part Number: ACS380040S02A42
• Certifications / Standards: CE; EN/IEC 61800-5-2; EN 61800-3; cUL; UL; RoHS; TUV; WEEE
