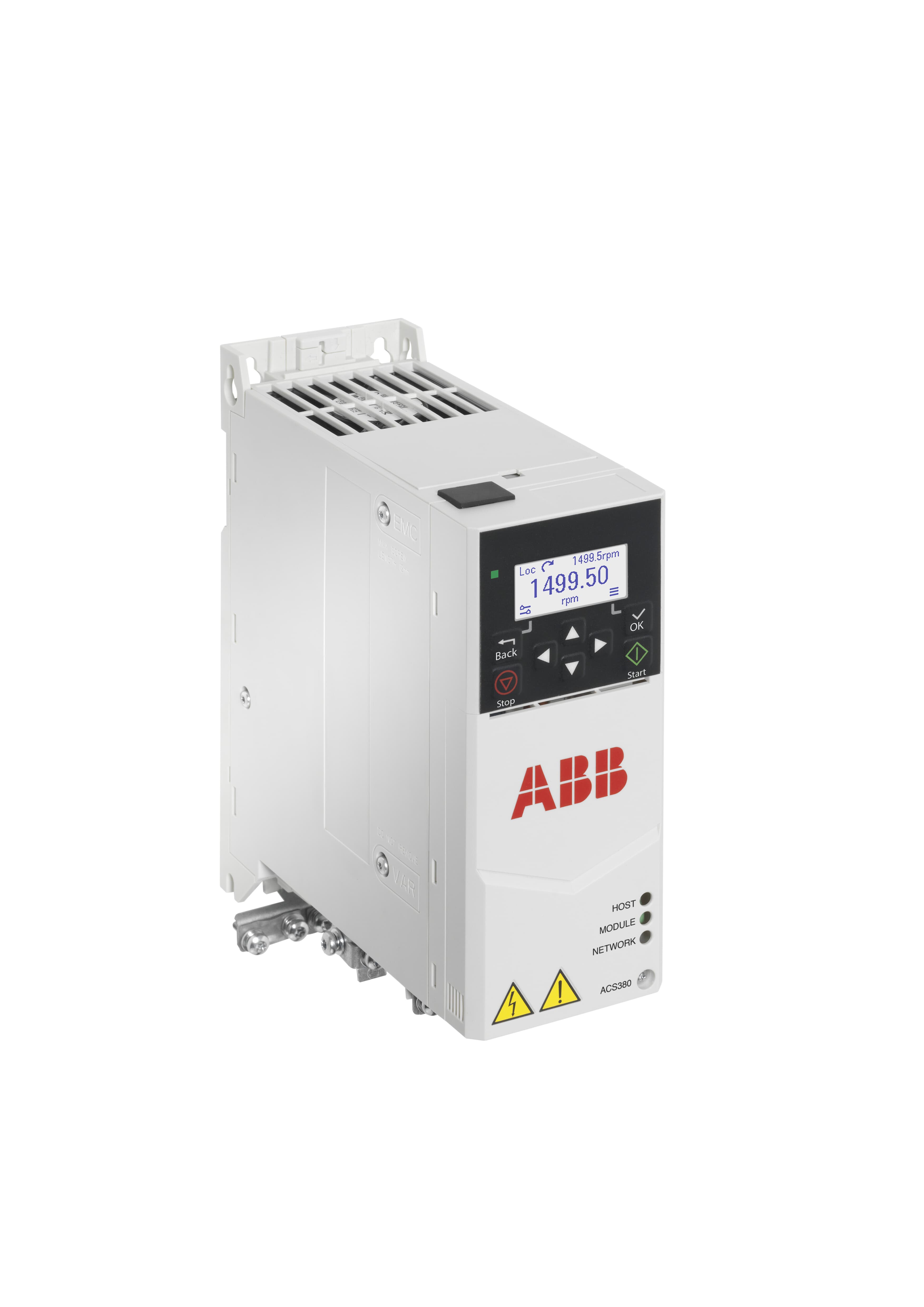

Abb ACS380-040N-09A4-4 LV AC machinery drive module 4 kW (R1)

Product Description

Abb ACS380-040N-09A4-4 is a low-voltage AC machinery drive module with IEC rating Pn 4 kW (9.4 A at 400 V) and UL rating Pld 5 Hp (7.6 A at 480 V). The three-phase module supports 380–480 VAC nominal input, sensorless vector motor control (open loop), integrated operator controls, and built-in braking chopper. It is intended for machine-building applications and panel mounting in frame size R1 with IP20 protection.

• IEC rating: 4 kW, 9.4 A at 400 V; UL rating: 5 Hp, 7.6 A at 480 V
• Motor control modes: sensorless vector (open-loop), V/Hz speed control, constant and variable torque
• Integrated operator keypad, built-in braking chopper, panel-mount frame R1, protection rating IP20

Product Highlights

4 kW IEC / 5 Hp UL; 3-phase 380–480 VAC nominal input; sensorless vector control; frame R1, IP20

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS380-040N-09A4-4

Technical Specifications

• Brand: Abb
• Manufacturer Part Number: ACS380-040N-09A4-4
• Product ID: 3AXD50000295593
• Product Family: ACS380
• Type: LV AC machinery drive module
• Frame Size: R1
• Mounting Type: Panel
• Input Phase: 3
• Input Voltage (Nominal): 380-480 VAC
• Input Voltage (IEC rated): 400 V
• UL Rated Voltage: 480 V
• IEC Power (Pn): 4 kW
• UL Power (Pld) / Horsepower: 5 hp
• IEC Current: 9.4 A
• UL Current: 7.6 A
• Constant Torque Amps: 4.8 A
• Variable Torque Amps: 7.6 A
• Motor Control: Sensorless vector (open loop vector)
• Operating Modes: Sensorless vector; V/Hz speed control; constant and variable torque
• Brake: Built-in braking chopper; dynamic and flux braking supported
• Operator Controls: Integrated keypad
• Protection Rating: IP20
• Dimensions (HxWxD): 8.66 in x 2.76 in x 6.85 in
• Net Weight: 3.5 lbs
• Analog Inputs: 2 (0-10 V / 2-10 V / 0-20 mA / 4-20 mA)
• Analog Outputs: 1 (0-20 mA)
• Digital Inputs: 4 (NPN)
• Control Outputs: 1 NPN, 1 relay
• Communications: Modbus RTU standard; optional fieldbus adapters
