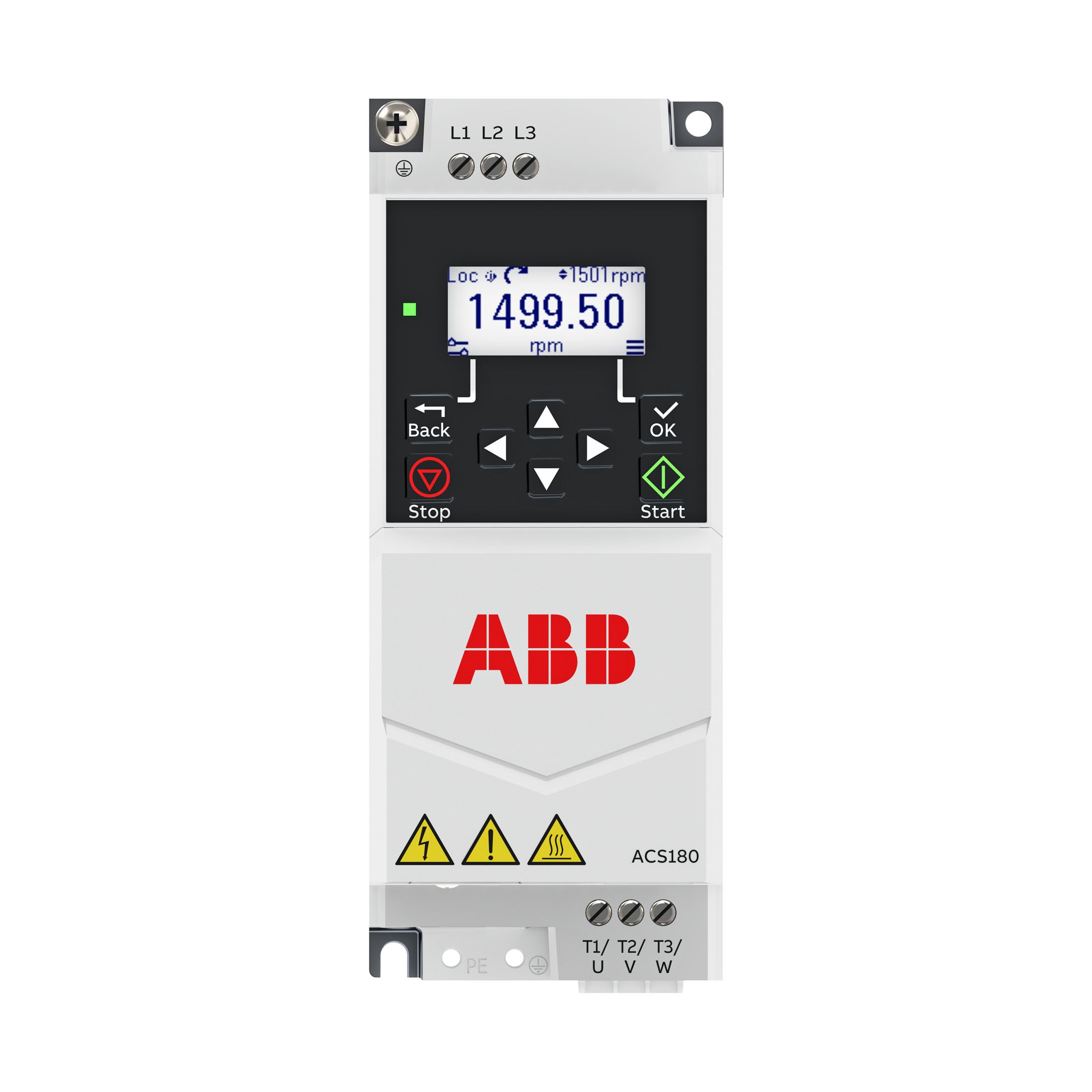

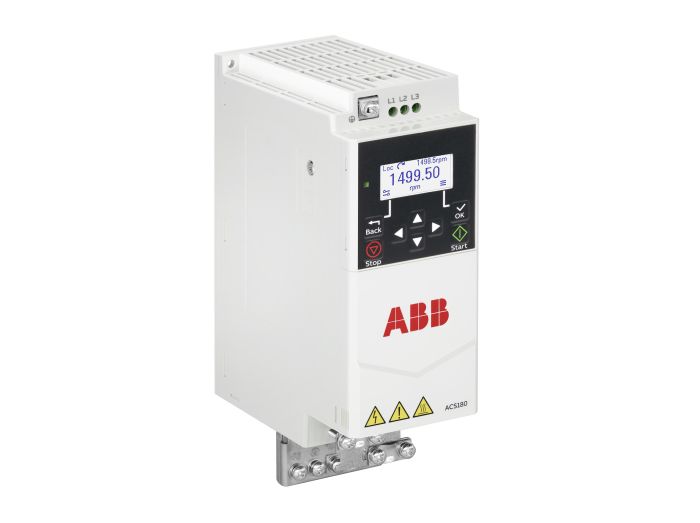

ABB ACS180-04S-09A4-4 AC Drive

Product Description

The ABB ACS180-04S-09A4-4 is an AC drive made for controlling three-phase motors. It operates with an input voltage range of three hundred eighty to four hundred eighty VAC and provides three-phase output between four hundred and four hundred eighty VAC. This unit allows for speed control via V/Hz method and torque control, either constant or variable. An integrated keypad facilitates operator control and installation is designed for wall mounting.

• Input Voltage: 380-480 VAC, Three-Phase
• Output Voltage: 400-480 VAC, Three-Phase
• Integrated Keypad for easy operation

Product Highlights

Excellent for industrial applications, the ABB ACS180-04S-09A4-4 drive offers flexibility with multiple operating modes and robust control features.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: ACS180

Technical Specifications

• Horsepower: 5.0 HP
• Input Phase: Three Phase Input
• Output Phase: Three Phase Output
• Enclosure Rating: IP20
• Mounting Type: Wall
• Braking Type: Flux Braking
• AC Line Regenerative: Yes
• Rated Current: 9.4 Amps
