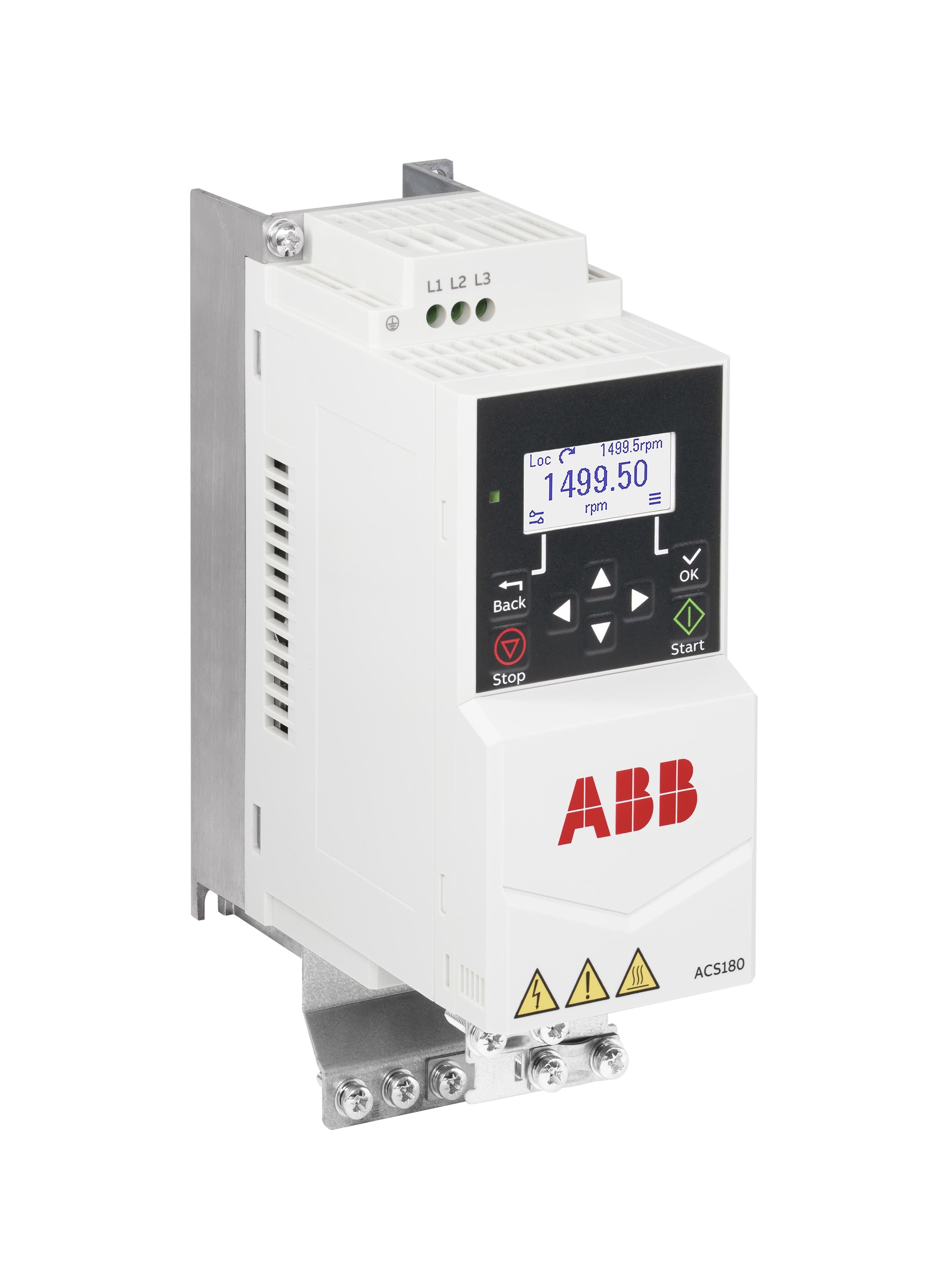

ABB ACS180-04S-01A8-4 AC Drive

Product Description

The ABB ACS180-04S-01A8-4 is an AC drive that is suitable for machinery applications. It is designed to accept a three-phase input voltage ranging from three hundred eighty to four hundred eighty volts AC. This drive operates at a rated power of zero point five five kilowatts, equivalent to zero point seven five horsepower. It has an IP20 protection rating, which makes it suitable for various environments.

• Three-phase input voltage of three hundred eighty to four hundred eighty volts AC.
• Rated power of zero point five five kilowatts (zero point seven five horsepower).
• Includes features such as Safe Torque Off and Flystart.

Product Highlights

This AC drive integrates multiple functional features for efficient motor control, including torque boost and slip compensation. It supports Modbus RTU communication protocol, which enhances connectivity and control options.

Product Information

Standard Information

• Brand: ABB
• MPN: ACS180-04S-01A8-4

Technical Specifications

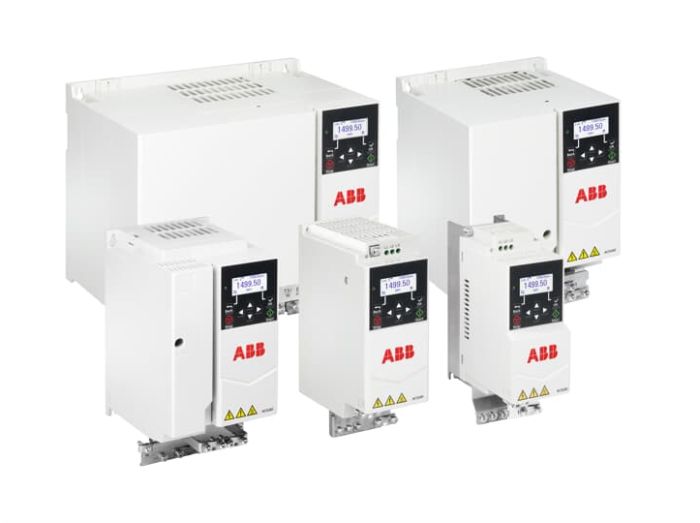

• Product Series: ACS180
• Main Function: Variable Speed/Frequency Drive
• Rated Input Voltage: 380Vac-480Vac
• Rated Current: 1.8A
• Max Output Current: 2.2A
• Rated Active Power: 0.55kW
• Network Frequency: 47-63 Hz
• Mounting Mode: Surface / Wall
• Enclosure Rating: IP20
• Dimensions: Width of seventy millimeters, height of two hundred nine millimeters, depth of one hundred forty-three millimeters
• Weight: 0.92kg
• Operating Temperature: -10 to +40 °C
• Storage Temperature: -40 to +70 °C
