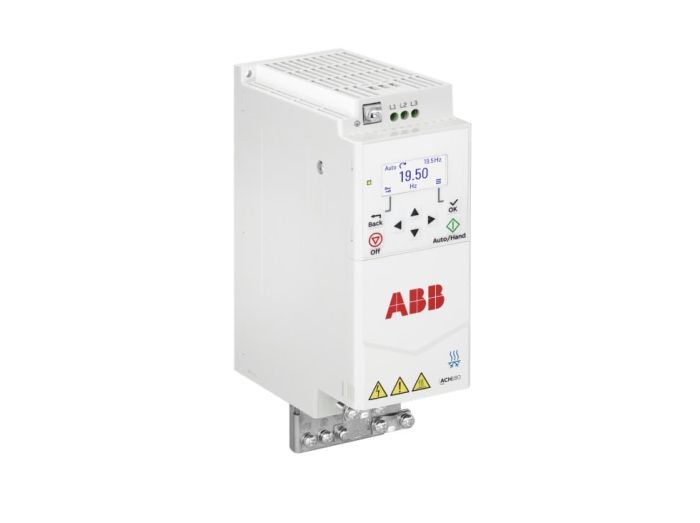

ABB ACH180-04S-25A0-2 AC Drive

Product Description

The ABB ACH180-04S-25A0-2 is an AC drive suitable for 200-240V, 3-phase systems. It is designed for both variable and constant torque applications. The drive includes built-in operator controls and meets an IP20 protection standard. It can be mounted on DIN rail or panels and features an integrated module for better handling.

• Rated for 7.5HP in variable torque applications.
• Rated for 5HP in constant torque applications.
• IP20 rating ensures protection from solid objects.

Product Highlights

Use this AC drive for efficient motor control in industrial environments. Its versatile design makes it ideal for different mounting types.

Product Information

Standard Information

• Brand: ABB
• Product Series: ACH180

Technical Specifications

• MPN: ACH180-04S-25A0-2
• Nominal Input Voltage: 240 VAC
• Input Voltage: 200-240 VAC
• Phase: 3
• HP (Variable Torque Rating): 7.5 hp
• HP (Constant Torque Rating): 5 hp
• Output Current (Variable Torque): 24.2 A
• Output Current (Constant Torque): 16.7 A
• IP Rating: IP20
• Mounting Type: DIN Rail
• Height: 8.07 inches
• Width: 6.69 inches
• Depth: 6.85 inches
• Operating Temperature: -10°C to 50°C
• Net Weight: 8.605 lbs
