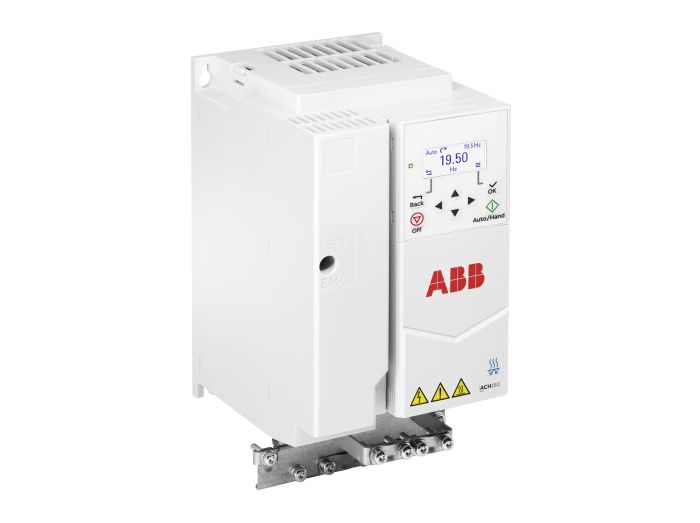

ABB ACH180-04S-12A6-4 AC Drive

Product Description

The ABB ACH180-04S-12A6-4 is a variable frequency drive tailored for 3-phase systems. It operates within an input voltage range of three hundred eighty to four hundred eighty volts AC and is suitable for applications rated at seven point five horsepower. This drive is equipped with built-in operator controls and features an IP20 protection rating. It can be mounted on a DIN rail or panel, making it ideal for various motor control applications in industrial settings.

• Variable torque rating: 7.5 HP
• Input voltage: 380-480 VAC
• Protection rating: IP20

Product Highlights

This variable frequency drive is designed for easy integration in demanding environments. A robust enclosure ensures reliability while providing essential motor control capabilities.

Product Information

Standard Information

• Brand: ABB
• Series: ACH180

Technical Specifications

• Manufacturer Part Number: ACH180-04S-12A6-4
• Product Type: Variable Frequency Drive
• Phase: 3
• Power Rating: 7.5 HP
• Output Current (Variable Torque Rating): 11 A
• Output Current (Constant Torque Rating): 7.6 A
• IP Rating: IP20
• Mounting Type: DIN Rail
• Frame Size: R2
• Enclosure: Open
• Weight: 5.55 lbs
• Operating Temperature Range: -10°C to 50°C
