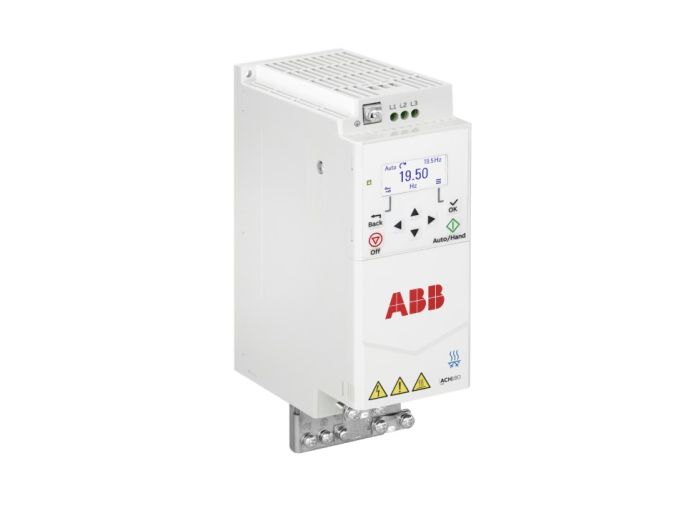

ABB ACH180-04S-09A8-2 AC Drive

Product Description

The ABB ACH180-04S-09A8-2 is an AC drive intended for HVAC systems. This model accepts a voltage range of 200-240 volts in a three-phase setup and can support motors up to two horsepower. Integrated operator controls come standard on this unit, which is designed for easy DIN rail mounting. The frame size is classified as R1, offering a compact installation option. The drive is capable of providing variable torque output of 9.3 Amps and a constant torque output of 7.5 Amps.

• Input Voltage: 200-240V AC, 3-Phase
• Variable Torque Output: 9.3 Amps
• Mounting Type: DIN Rail

Product Highlights

This AC drive effectively manages HVAC operations with built-in operator controls and an IP20 rating for open-type installations.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: ACH180

Technical Specifications

• MPN: ACH180-04S-09A8-2
• Input Voltage: 200-240 VAC
• Output Current (Variable Torque Rating): 9.3 A
• Output Current (Constant Torque Rating): 7.5 A
• HP (Variable Torque Rating): 2 hp
• HP (Constant Torque Rating): 2 hp
• Frequency: 63 Hz
• Frame Size: R1
