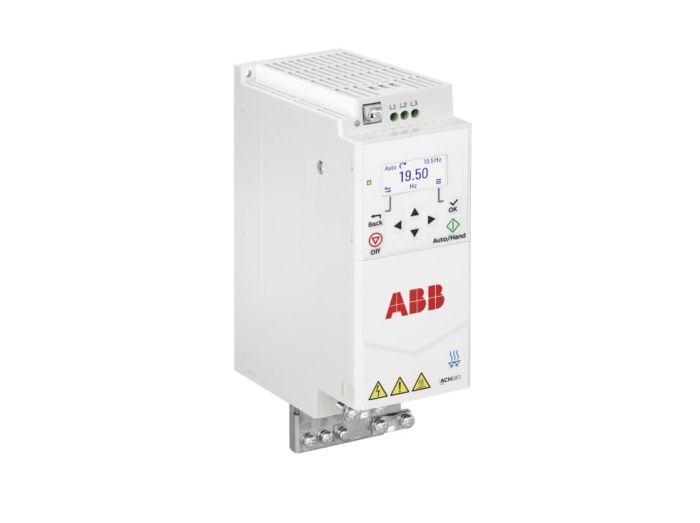

ABB ACH180-04S-09A4-4 AC Drive

Product Description

The ABB ACH180-04S-09A4-4 is a variable frequency drive made for three-phase systems. It operates on an input voltage of 380 to 480 volts AC. This drive is suitable for both variable and constant torque uses in industrial settings. It has built-in operator controls and an IP20 protection rating, offering basic dust and accidental contact protection.

• Rated for five horsepower in variable torque applications and three horsepower in constant torque applications.
• Integrated interface for easy configuration and setup.
• Compact design, ideal for DIN rail or panel mounting.

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: ACH180-04S-09A4-4
• Manufacturer: ABB

Technical Specifications

• Product Series: ACH180
• Product Type: Variable Frequency Drive
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• Input Voltage: 480V AC
• Phase: 3
• Power Rating: 4 kW
• HP (Variable Torque Rating): 5 hp
• Amps (Variable Torque Rating): 7.6 A
• Amps (Constant Torque Rating): 6.3 A
• HP (Constant Torque Rating): 3 hp
• Operator Controls: Built In
• Protection Rating: IP20
• Mounting Type: DIN Rail or Panel Mount
• Height: 7.48 inches
• Width: 2.76 inches
• Depth: 5.63 inches
• Frequency: 63 Hz
• Frame Size: R1
• Operating Temperature Range: -10°C to 50°C
• Net Weight: 3.865 lbs
• Gross Weight: 3.865 lbs
• Poles: 3P
