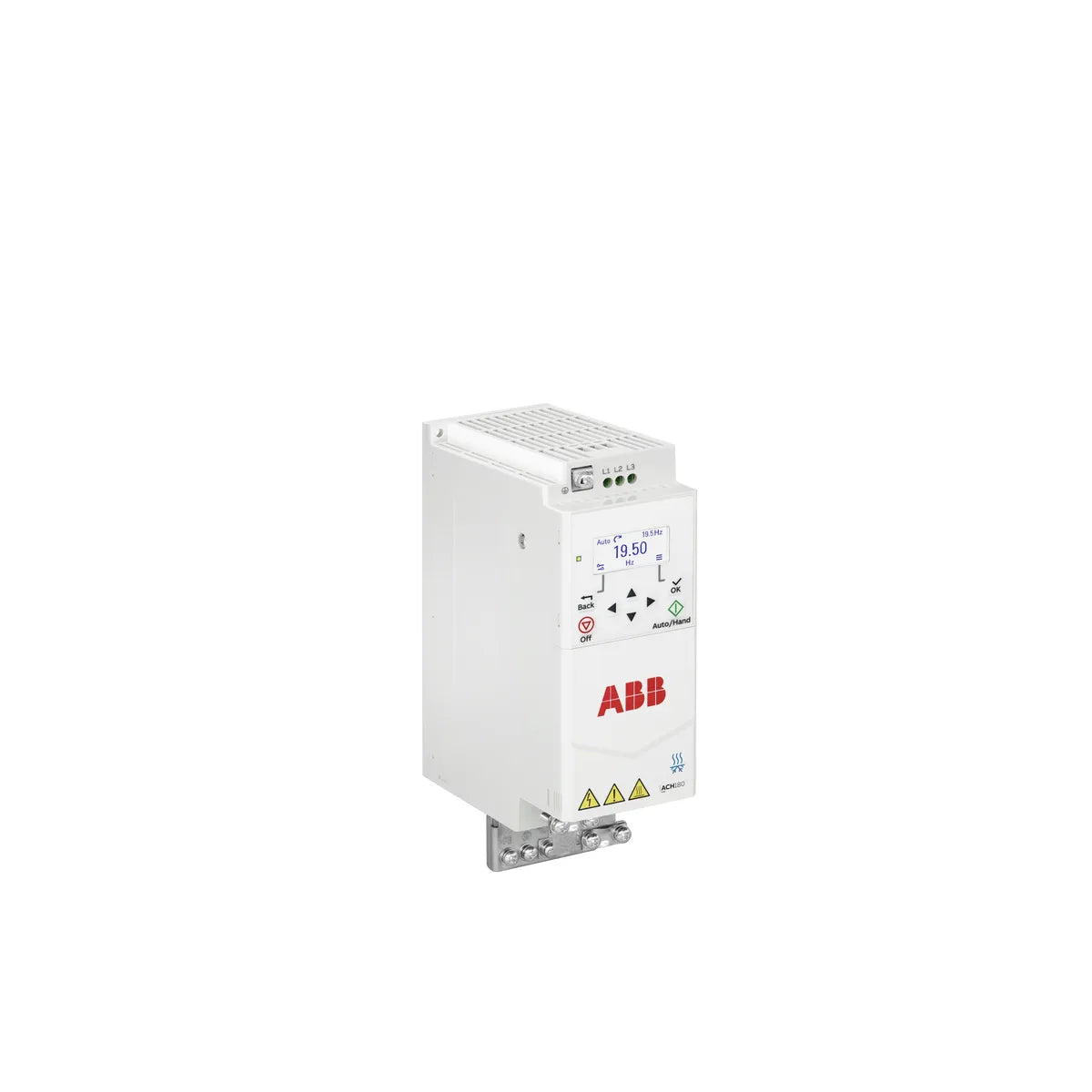

ABB ACH180-04S-07A8-2 HVAC Drive 2 HP R1

Product Description

The ABB ACH180-04S-07A8-2 is an HVAC drive from the ACH180 series, built for effective motor control. Rated for a 200-240V input, this two horsepower drive supports 7.4 amps and has an integrated design. It is designed for industrial applications that require variable frequency drive technology.

• Precise motor speed control
• Compact design for space-saving installation
• Easy-to-use interface for configuration

Product Highlights

This ABB HVAC drive ensures reliable performance and seamless integration for a wide range of motor control applications.

Product Information

Standard Information

• Brand: ABB
• MPN: ACH180-04S-07A8-2

Technical Specifications

• Nominal Input Voltage: 240 VAC
• Phase: 3
• HP (Variable Torque Rating): 2 hp
• Amps (Variable Torque Rating): 7.5 A
• Amps (Constant Torque Rating): 6.6 A
• AC Voltage: 200-240 VAC
• Operator Controls: Built In
• IP Rating: IP20
• Mounting: DIN Rail
• Height: 7.48 inches
• Width: 2.76 inches
• Depth: 5.63 inches
• Frame Size: R1
• Net Weight: 3.865 lbs
• Gross Weight: 3.865 lbs
• Product Type: Variable Frequency Drive
• Operating Temperature Range: -10°C to 50°C
• Protection Rating: IP20
• Condition: New
• Product Warranty (months): 12
• Available For Repair: Yes
• Repair Warranty (months): 12
