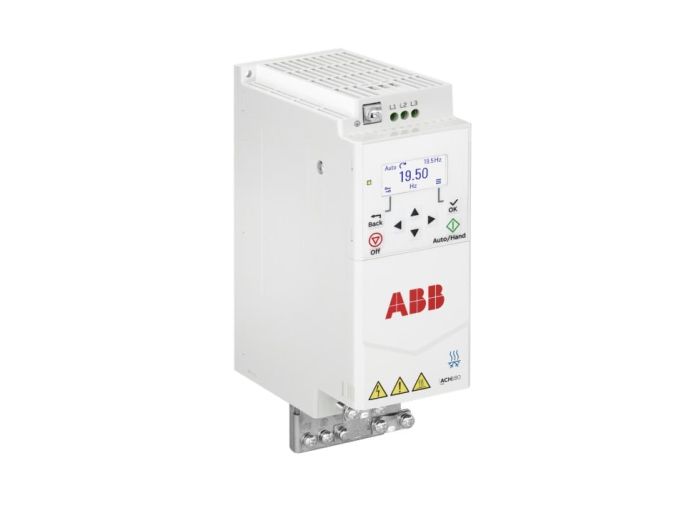

ABB ACH180-04S-05A6-4 AC Variable Frequency Drive

Product Description

The ABB ACH180-04S-05A6-4 is an AC variable frequency drive ideal for HVAC applications. It is designed to handle a three-phase input voltage between three hundred eighty to four hundred eighty VAC. This drive supports a constant torque rating of two horsepower and a variable torque rating of three horsepower. It includes built-in operator controls and features an open-type enclosure.

• Input Voltage: 380-480 VAC, 3-Phase
• Constant Torque Rating: 2 HP (3.5 A)
• Variable Torque Rating: 3 HP (4.8-5.3 A)

Product Highlights

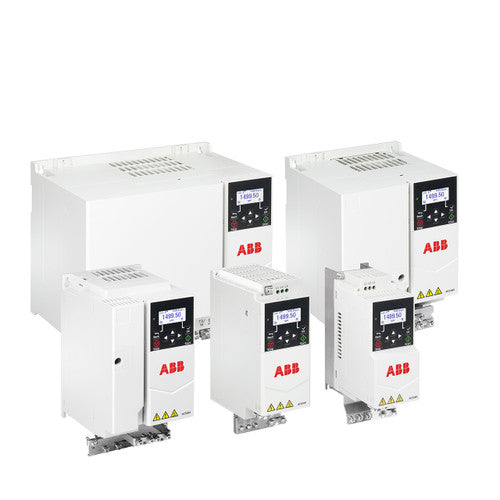

The ABB ACH180 series offers reliable control for various HVAC systems, enhancing performance and efficiency. The drive's DIN rail mount design provides ease of installation in control panels and cabinets.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: ACH180

Technical Specifications

• MPN: ACH180-04S-05A6-4
• Input Phase: 3-Phase
• Output Phase: 3-Phase
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• HP (Variable Torque Rating): 3 HP
• Amps (Variable Torque Rating): 4.8 A
• Amps (Constant Torque Rating): 3.5 A
• AC Voltage: 380-480 VAC
• Operator Controls: Built In
• IP Rating: IP20
• Mounting: DIN Rail
• HP (Constant Torque Rating): 2 HP
• Height: 7.48 inches
• Width: 2.76 inches
• Depth: 5.63 inches
• Frequency: 63 Hz
• Frame Size: R1
• Net Weight: 3.865 lbs
• Gross Weight: 3.865 lbs
