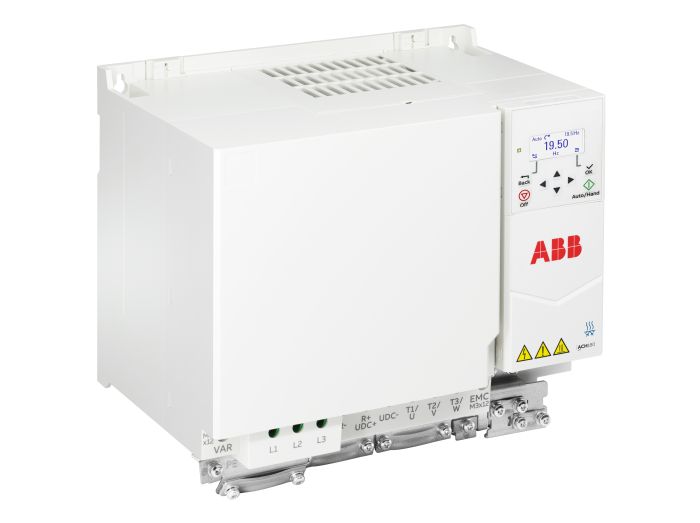

ABB ACH180-04S-038A-4 Variable Frequency Drive 25HP (Variable Torque)

Product Description

The ABB ACH180-04S-038A-4 is a variable frequency drive designed for controlling motors in industrial settings. This drive operates effectively in 3-phase systems with an input voltage range of three hundred eighty to four hundred eighty volts AC. It supports applications requiring twenty-five horsepower in variable torque or twenty horsepower in constant torque. Set up is straightforward with built-in operator controls, and the unit has an IP20 protection rating for reliable performance.

• Works with 3-phase, 380-480VAC input voltage
• Supports up to 25HP for variable torque applications
• Equipped with built-in operator controls and IP20 protection

Product Highlights

The ABB drive is ideal for various motor control applications in industrial environments.

Product Information

Standard Information

• Manufacturer Part Number: ACH180-04S-038A-4
• Manufacturer: ABB

Technical Specifications

• Input Voltage: 380 VAC, 415 VAC, 480 VAC
• Phase: 3
• Power Rating: 20HP
• Variable Torque Rating: 25HP
• Amps (Variable Torque): 34 A
• Amps (Constant Torque): 27 A
• IP Rating: IP20
• Mounting: DIN Rail
• Dimensions: 8.07 x 10.24 x 7.03 inches
• Weight: 11.7 lbs
• Temperature Range: -10°C to 50°C
