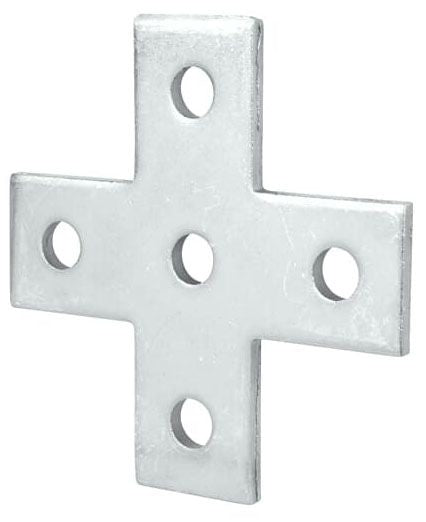

Abb AB253EG Flat X Plate Strut Fitting 5 Hole

Product Description

The ABB AB253EG is a 5-hole flat X plate designed for use with standard strut channel systems. This fitting serves as a structural connection point, allowing four runs of strut channel to intersect at a single location in a flat plane. It is used to build rigid, load-bearing support frameworks for conduit, cable tray, pipe, and mechanical equipment. Electricians, pipefitters, and mechanical contractors install this type of fitting when constructing overhead or wall-mounted support grids. The plate ships 25 units per pack, with a pack weight of approximately 0.875 pounds per unit based on the stated pack weight.

Flat X plates like the AB253EG are used in commercial and industrial construction where strut channel frameworks must branch in four directions at a single node. Typical applications include electrical conduit support grids, HVAC equipment hangers, cable tray support structures, and multi-trade support systems in mechanical rooms, data centers, and industrial facilities. The 5-hole pattern provides multiple fastening points for secure, adjustable connections to intersecting strut runs.

Key Features

• 5-hole flat X configuration for four-way strut channel intersections
• Flat plate design keeps all connected strut runs in a single plane
• Multiple fastening points for rigid, adjustable connections
• Sold in packs of 25 units for project-quantity purchasing
• Package dimensions: 7.5 inches x 9.25 inches x 5 inches

Compatibility

Designed as an OEM-style fitting for use with standard strut channel support systems in electrical, mechanical, and plumbing installations.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working under NEC or applicable local mechanical codes. De-energize any nearby electrical systems before working in the installation area. Secure all strut channel connections with appropriately rated hardware and verify that the assembled framework meets the load requirements for the supported equipment. Inspect the fitting for damage before installation and do not overtighten fasteners beyond the hardware manufacturer's specifications.

Technical Specifications

• Hole Count: 5
• Plate Style: Flat X
• Package Quantity: 25 per pack
• Package Weight: 87.5 pounds per 100 units
• Package Dimensions (L x W x H): 7.5 inches x 9.25 inches x 5 inches
• UPC: 61601302646

Standard Information

• Brand: ABB
• Manufacturer Part Number: AB253EG
