Abb AB220EG 4-hole Flat T Plate S-strut Fitting

Product Description

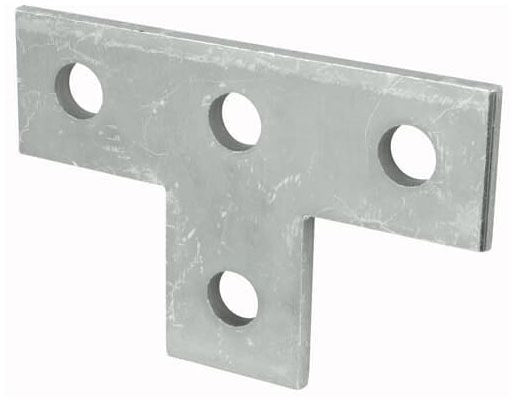

The ABB AB220EG is a 4-hole flat T plate fitting designed for use with S-Strut channel framing systems. This bracket provides a rigid 90-degree T-junction connection point for strut channel assemblies used in electrical, mechanical, and plumbing support applications. Fabricated for structural support work, the flat T plate accepts standard strut hardware and fasteners, allowing installers to branch runs or anchor channel sections at a right angle without field-fabricating connection points. The part ships in packs of 25 units, making it practical for project-quantity ordering on commercial and industrial jobs.

The AB220EG flat T plate is used wherever S-Strut channel systems support conduit, cable tray, pipe, mechanical equipment, or HVAC ductwork. It is suited for both new construction and retrofit framing installations in commercial, industrial, and institutional settings. Electricians, pipefitters, and mechanical contractors typically specify these fittings when building out overhead or wall-mounted strut support grids that require branching connections.

Key Features

• 4-hole flat T plate configuration for right-angle strut channel branching
• Designed to accept standard S-Strut channel hardware and fasteners
• Sold in 25-unit outer packs for project-quantity efficiency
• Compact footprint: 6.5 inches x 8.2 inches x 4.7 inches per unit pack
• Consistent with ABB strut channel fitting system dimensions for direct integration

Compatibility

Designed as an OEM-style fitting for S-Strut channel framing systems requiring flat T-junction connections at standard strut splice points.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors following applicable NEC or local building code requirements for strut support systems. De-energize any nearby electrical equipment before working in the installation area. Use appropriate strut bolts, spring nuts, and hardware rated for the load being supported. Do not exceed the structural load rating of the channel system or connected fasteners.

Technical Specifications

• Configuration: 4-Hole Flat T Plate
• Pack Dimensions (L x W x H): 6.5 inches x 8.2 inches x 4.7 inches
• Weight per 100 Units: 73 pounds
• Units per Outer Pack: 25
• UPC: 61601301135

Standard Information

• Brand: ABB
• Manufacturer Part Number: AB220EG
