Abb AB205 Corner Angle Strut Fitting 90 Degree 25 Pack

Product Description

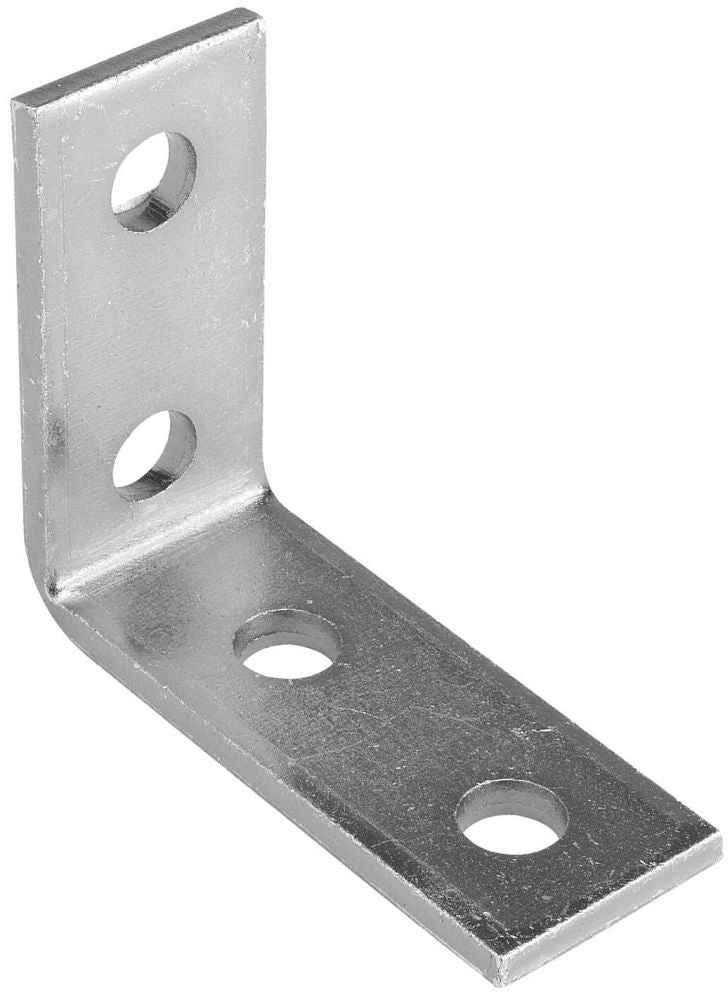

The ABB AB205 is a 4-hole, 90-degree corner angle fitting designed for use with standard strut channel framing systems. This structural connector joins strut sections at a right angle, providing rigid support for electrical raceways, mechanical piping, HVAC ductwork supports, and general industrial framing applications. Sold in a pack of 25, the AB205 is a quantity-ready solution for contractors and tradespeople building out support structures on larger commercial or industrial jobs. Licensed electricians, mechanical contractors, and pipe tradespeople are the primary installers of this type of hardware.

The AB205 corner angle is suited for projects requiring repeatable 90-degree connections within strut channel assemblies. Common applications include electrical conduit support grids, unistrut-style framing runs in commercial buildings, equipment mounting frames, and overhead support systems in mechanical rooms. The pack quantity of 25 makes it practical for use on mid-to-large scale installations where multiple corner connections are needed throughout a single project.

Key Features

• 4-hole design provides secure, rigid 90-degree corner connection between strut channel sections
• Compatible with standard strut channel framing systems used in electrical and mechanical installations
• Sold in a 25-piece pack for efficient stocking and job-site use
• Compact profile fits within standard strut channel dimensions for clean, low-profile assemblies

Compatibility

Designed as an OEM-style replacement and standard accessory fitting for use with standard strut channel framing systems in electrical, mechanical, and structural support applications.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors familiar with strut channel framing systems. De-energize any nearby electrical circuits before working in the installation area. Standard hardware tools including wrenches and strut nuts are required to secure fittings to channel. Follow applicable NEC and local building code requirements for support spacing and load ratings when designing strut support systems.

Technical Specifications

• Configuration: 4-Hole 90-Degree Corner Angle
• Package Quantity: 25 per pack
• Package Length: 10.5 inches
• Package Width: 7.4 inches
• Package Height: 5.7 inches
• UPC: 61601325903

Standard Information

• Brand: ABB
• Manufacturer Part Number: AB205
