ABB AB14-10A T&B 20-14 Bare Flag Term

Product Description

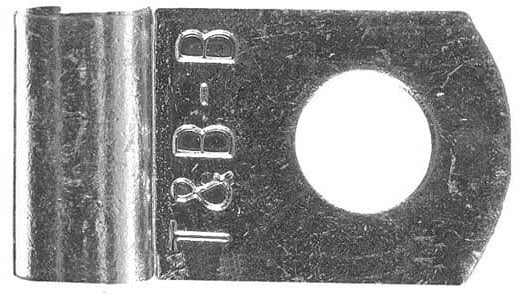

ABB provides the AB14-10A Sta-Kon® Flag Terminal for electrical connections. This non-insulated flag terminal works with conductors ranging from twenty-two to fourteen AWG. It features a flag tongue design that allows for a ninety-degree connection without bending the wire.

• Compatible with 22 to 14 AWG conductors
• Designed for 600 VAC and up to 302 degrees Fahrenheit
• Constructed from copper with an electroplated tin finish

Product Highlights

The AB14-10A is ideal for wiring connections in various electrical applications. It ensures reliable performance with its sturdy construction and simplicity in installation.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621080312

Technical Specifications

• Type: Non-Insulated
• Color: Metallic
• Conductor Size: 22 to 14 AWG
• Finish: Electroplated Tin
• Length: 0.55 inches
• Material: Copper
• Series: AB Series
• Standards/Approvals: UL Listed | CSA Certified | UL File No. E9809
• Stud Size: #10
• Temperature Rating: 302 degrees Fahrenheit
• Tongue Size: 0.31 inches W x 0.22 inches THK
• Tongue Type: Flag
• Voltage Rating: 600 VAC
