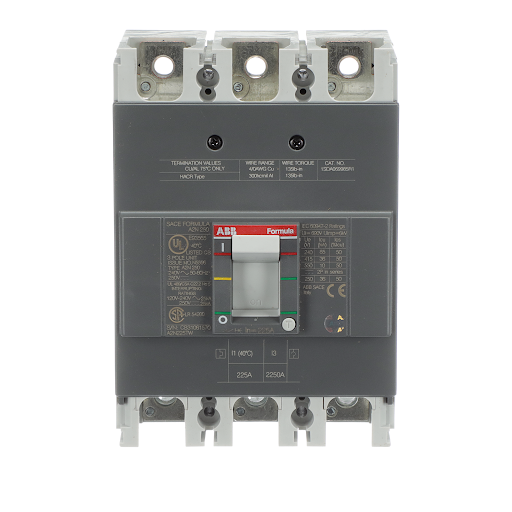

Abb A2N225tw Circuit Breaker 225A

Product Description

The ABB A2N225TW is a circuit breaker designed for simplicity and quality. This molded case circuit breaker is rated at 240V AC and 250V DC with a fixed trip point. It features a thermal magnetic trip device and an interrupt current rating of 25kA at 240V AC/DC. Ideal for panelboards with 125A - 250A capacity.

• Fixed thermal and magnetic threshold values
• Available with front terminals
• Suitable for panelboards with 125A - 250A capacity

Product Highlights

The ABB A2N225TW circuit breaker offers a compact design and reliable performance for various applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: A2N225TW

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: A2N225TW-1
• Current Rating: 225 A
• Voltage Rating: 240 V
• Number of Poles: 1 Pole
• Type: Thermal/Magnetic
• Series: Formula UL Series
• Mounting Type: Chassis, Rear Mount
• Trip Current: 2250 A
• Amperage: 225 Amp
• Applications: For panelboards with 125A - 250A capacity
• Current: 225 Amp
• Sub Brand: Formula
• Box Quantity: 1
