Abb 9T51B0108 1c,0.5kva,120x240-12/24,100c,3r,bb,qb

Product Description

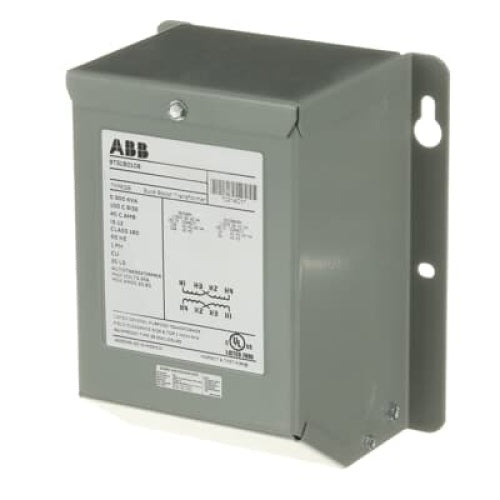

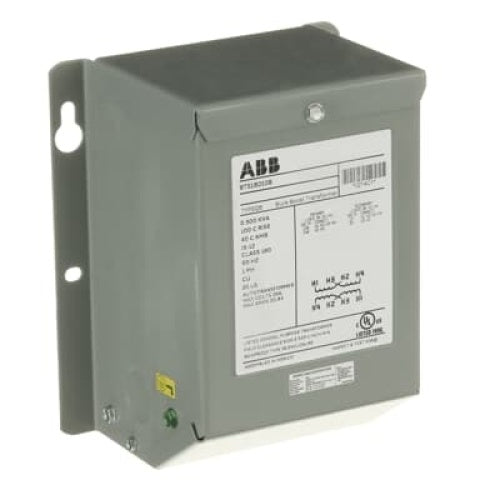

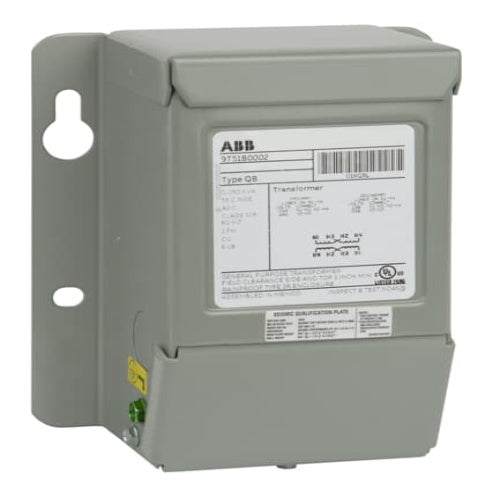

The ABB 9T51B0108 buck-boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%.

• QB small power transformers come standard in NEMA 3R nonventilated weatherproof enclosures
• These units feature encapsulated copper core and coils with integrated junction boxes for easy wiring
• Improved termination spacing and wiring compartment room gives greater flexibility in selecting various UL listed connectors for either copper or aluminum cable.

Product Highlights

ABB's general purpose transformers offer dependable and quiet transformer operation for a range of applications. Designed for general-purpose use, they are rated up to 600 Volts, making them suitable for appliance, lighting, and power loads from electrical distribution systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 9T51B0108

Technical Specifications

• Brand: ABB
• Enclosure Type: NEMA 3R
• Frequency: 60 Hz
• Manufacturer Part Number: 9T51B0108
• Number of Phases: 1
• Power Rating: 0.5 kVA
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 12/24 VAC
• Type: Low Voltage Dry Type Transformer
• Transformer Voltage Phases: Single Phase
• Transformer VoltAmp: 500 VA
