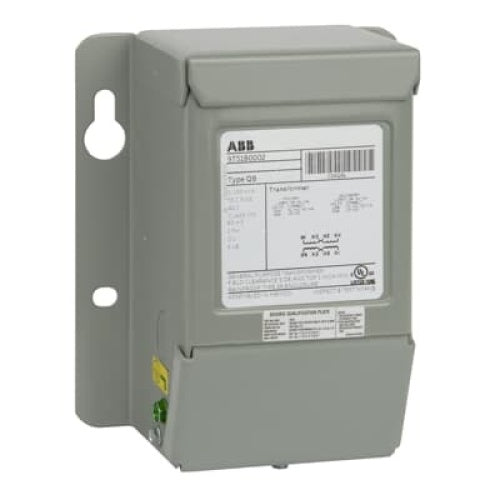

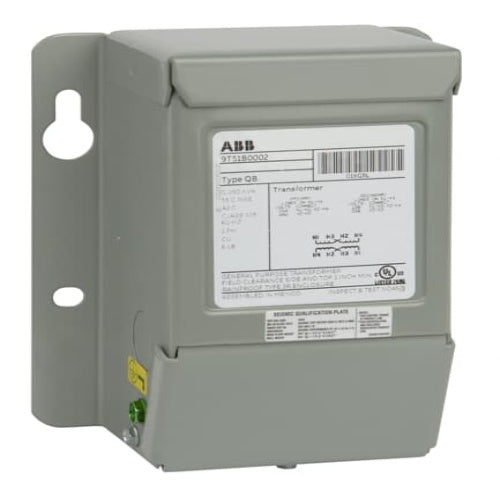

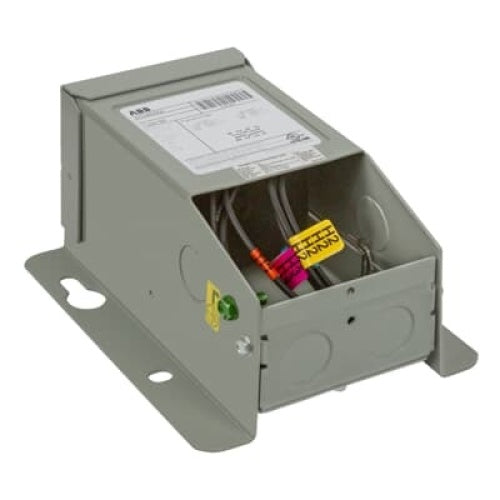

Abb 9T51B0104 buck boost autotransformer 0.1 kVA

Product Description

The ABB 9T51B0104 buck-boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. They comply with NEC Article 210-9, Exception 1, when field connected as an autotransformer.

• UL Listed
• C-UL Listed
• Knockouts Provided on Back and Bottom
• High Grade Silicon Steel Core

Product Highlights

These transformers feature an encapsulated core and coil in a NEMA 3R non-ventilated weatherproof enclosure. Suitable for appliance, lighting, and power loads from electrical distribution systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 9T51B0104

Technical Specifications

• Category: Buck Boost Autotransformer
• Phase: 1
• PriVoltage: 120x240
• SecVoltage: 12/24
• KVA: 0.1 KVA
• Coil Material: CU
• TempRise: 55
