ABB 9T51B0012 QB Transformer 2 KVA

Product Description

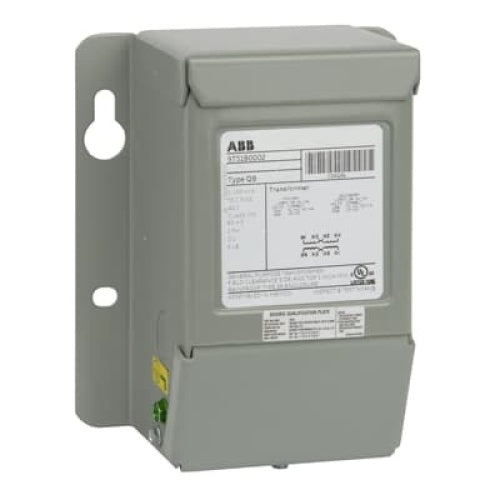

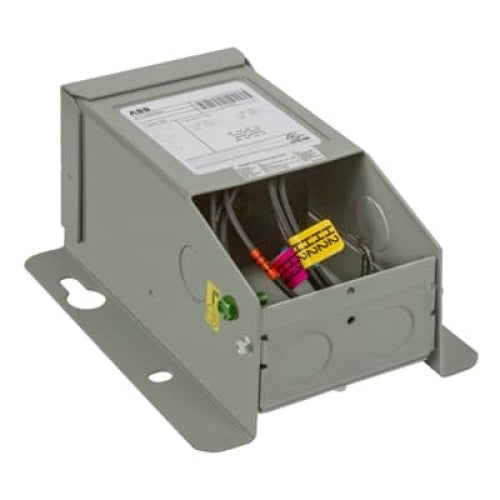

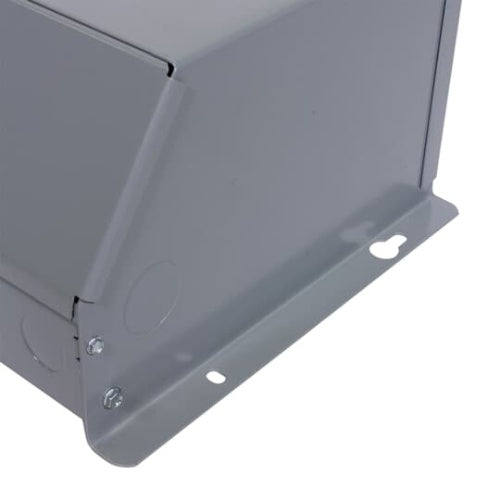

The ABB 9T51B0012 QB transformer is a single-phase device designed for various applications. It features encapsulated core and coils housed in a NEMA 3R nonventilated weatherproof enclosure. This transformer is rated at 2 KVA, operates at a frequency of 60 Hz, and is ideal for general-purpose use. It includes knockouts on the back and bottom for accessible wiring, along with side-mounted holes for easy installation.

• Encapsulated core and coils
• NEMA 3R weatherproof enclosure
• Knockouts for easy wiring

Product Highlights

This transformer is perfect for outdoor applications requiring a durable and reliable power source.

Product Information

Standard Information

• Category: Single-Phase: .050kVA-3kVA and 5kVA-25kVA
• Phase: 1

Technical Specifications

• Primary Voltage: 240x480 VAC
• Secondary Voltage: 120/240 VAC
• KVA: 2.0 KVA
• Coil Material: CU
• Temperature Rise: 100.0 °C
• Enclosure Type: NEMA 3R
• Manufacturer: ABB Electrification
• Mounting Style: Wall Mount
