ABB 9T21B1004G02 1A 5KVA 240X480-120/240

Product Description

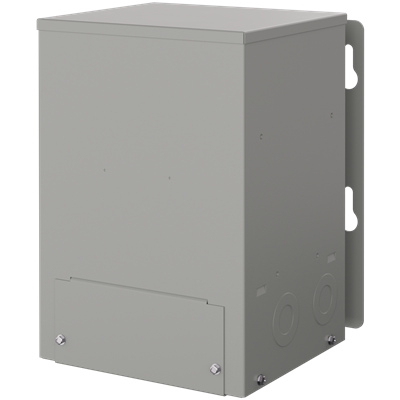

The ABB 9T21B1004G02 is a single-phase transformer designed for various electrical applications. This transformer has an encapsulated core and coils, ensuring reliable performance. It is housed in a NEMA 3R nonventilated weatherproof enclosure, providing protection against environmental factors. Knockouts are available on the back and bottom for easy wiring access. The easy side-mounting holes ensure straightforward installation in various settings. The primary voltage is 240x480 volts, while the secondary voltage offers versatility at 120/240 volts.

• Encapsulated core and coils
• NEMA 3R nonventilated weatherproof enclosure
• Knockouts provided on the back and bottom

Product Highlights

This transformer offers a robust solution for electrical distribution in challenging environments. It is ideal for applications requiring reliable power distribution.

Product Information

Standard Information

• Category: Single-Phase
• Phase: 1

Technical Specifications

• Primary Voltage: 240x480 VAC
• Secondary Voltage: 120/240 VAC
• KVA Rating: 5.0 KVA
• Coil Material: AL
• Temperature Rise: 115.0 °C
• Frequency: 60 Hz
• Frame Size: 16350
• Enclosure Type: NEMA 3R
• Power Rating: 5 kVA
• Type: Type QMS Dry Encapsulated
• Mounting Type: Wall
• Dimensions: 14.5 in H x 10.62 in W x 11 in D
