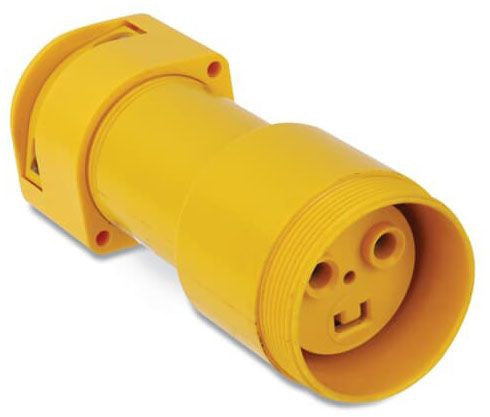

Abb 9C34U0 Connector 3P4W 30A 600V

Product Description

The ABB 9C34U0 is a 3-pole, 4-wire electrical connector rated for 30 amps and 600 volts. It is designed for use in industrial and commercial power distribution applications where a reliable, code-compliant connection point is required. Licensed electricians and industrial maintenance technicians install this type of connector in panel feeds, motor circuits, and equipment hook-ups that demand a secure, high-current plug-and-socket interface. The 3P4W configuration supports three hot conductors plus a neutral, making it suitable for three-phase and single-phase high-voltage circuits operating at up to 600 volts.

This connector is used in commercial and light industrial environments where 30-amp, 600-volt service is required at machinery, distribution panels, or disconnect points. Typical applications include manufacturing equipment feeds, temporary power connections on job sites, and service equipment in facilities that operate three-phase systems. It is sold in a 5-piece outer pack, making it practical for contractors stocking a service van or managing a multi-unit installation project.

Key Features

• 30-amp continuous current rating suitable for heavy-duty branch circuit and equipment connections
• 600-volt rating covers both single-phase and three-phase industrial service voltages
• 3-pole, 4-wire (3P4W) configuration supports grounded three-phase and split-phase circuits
• Packaged 5 per outer pack for efficient job-site or van-stock procurement
• UPC 70891716093 for verified product identification at point of purchase

Compatibility

Designed as an OEM-style replacement or new-installation connector for 3-pole, 4-wire, 30-amp, 600-volt electrical systems. No specific compatible model numbers or system families were identified in the available product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the circuit before handling or terminating the connector. Verify that conductor ampacity, conduit fill, and overcurrent protection all comply with NEC requirements for a 30-amp, 600-volt circuit. Do not exceed the connector's rated voltage or current under any operating condition.

Technical Specifications

• Current Rating: 30 amps
• Voltage Rating: 600 volts
• Pole Configuration: 3-Pole, 4-Wire (3P4W)
• Package Length: 13.75 inches
• Package Width: 10 inches
• Package Height: 4.5 inches
• Weight: 0.92 pounds per unit (sold as 5 per outer pack, 92 pounds per 100 units)
• Pack Quantity: 5 per outer pack
• UPC: 70891716093

Standard Information

• Brand: ABB
• Manufacturer Part Number: 9C34U0
