Abb 806S Outlet Box 2.5 Inches Gem 522

Product Description

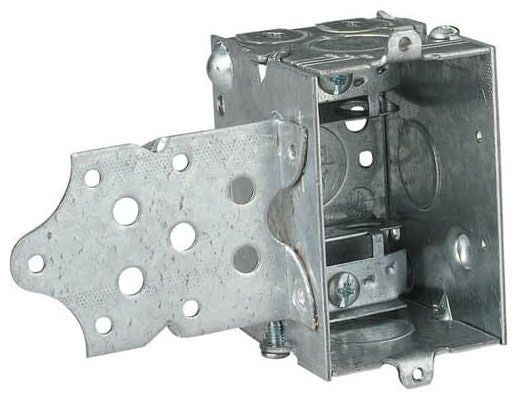

The ABB 806S is a 2.5-inch outlet box in the GEM 522 series, designed for electrical distribution and wiring applications. This box provides a secure, code-compliant enclosure for outlet connections in commercial and residential electrical installations. Licensed electricians install this type of box as part of branch circuit rough-in work, where a durable, properly sized enclosure is required to house wiring terminations and outlet devices. The 806S is built to support standard outlet configurations and integrates into typical stud or wall-cavity installations.

The ABB 806S outlet box is suited for use in residential and light commercial electrical systems. It fits into standard rough-in applications where a 2.5-inch depth box is specified by the electrical plan or required by local code. Electricians working on new construction or retrofit projects will find this box appropriate for branch circuit outlet installations where a GEM 522 series enclosure is called for.

Key Features

• 2.5-inch depth provides adequate wiring room for standard outlet device installations
• GEM 522 series design for consistent fit within compatible rough-in applications
• Sized to accommodate typical branch circuit wiring configurations
• Compact outer footprint for installation in standard wall cavities

Compatibility

Designed as an OEM-style replacement and standard fit for electrical rough-in applications requiring a 2.5-inch depth outlet box in the GEM 522 series configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel and verify with a non-contact voltage tester before beginning work. Secure the box firmly to framing or blocking to prevent movement after drywall installation. Do not overload the box with conductors beyond the fill capacity calculated per NEC Article 314.

Technical Specifications

• Depth: 2.5 inches
• Package Dimensions (L x W x H): 19.125 x 13.5 x 4 inches
• Weight: 67.5 pounds
• UPC: 78599115000

Standard Information

• Brand: ABB
• Manufacturer Part Number: 806S
