Abb 6hps split bolt connector 12 to 6 awg

Product Description

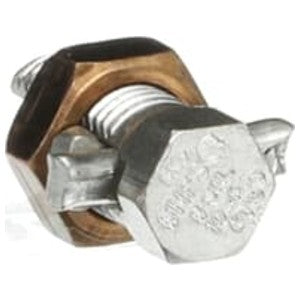

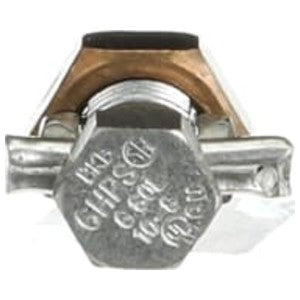

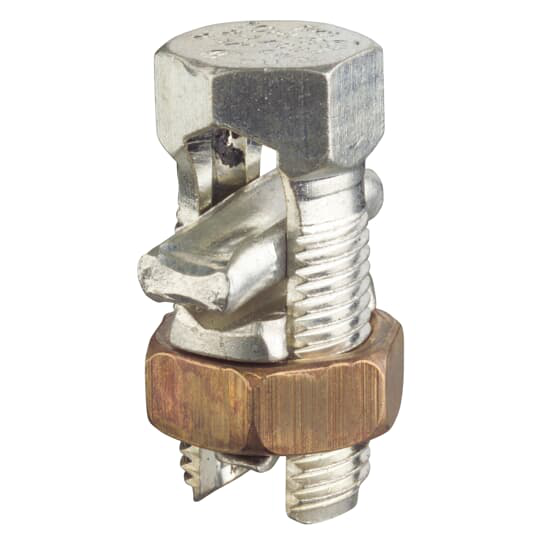

The ABB 6HPS is a Type HPS split-bolt connector with a spacer, designed for splicing, tapping, or terminating conductors. It accommodates a conductor range for equal main and tap of ACSR 8 and 6 Sol-12 Sol, with a minimum tap of 12 Sol when paired with one maximum main. This connector is tin plated for enhanced durability.

• Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance; features a contoured spacer of electrolytic copper.
• Blackburn Contax is recommended when used on aluminum conductors to ensure optimal performance.
• Most connectors are UL and CSA Certified specifically for copper conductor applications.

Product Highlights

This tin-plated copper alloy split-bolt connector is suitable for splicing, tapping, or terminating copper, aluminum, and ACSR conductors, offering corrosion resistance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 6HPS
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 6HPS
• Strength: High Strength
• Finish: Electro-Tin Plated
• Material: Copper Alloy
• Standard: UL E9809
• Sub Brand: Blackburn
• Application: Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
• Mounting Type: Hexagon Screw
• Conductor Size Range: 12 to 6 AWG
• Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
• Bolt Size: 15/32 x 1-1/8 in
• Product Type: Type HPS
• Split: 0.17 in
• Hex Nut Size: 21/32 in
• Color: Metallic
• Compatible Conductors: ACSR, Aluminum, Copper
• Tap Conductor Size: 6 Sol to 12 Sol AWG
• Main Conductor Size: 6-12 AWG Solid
• ACSR Conductor Range (Equal Main/Tap): 8 AWG
