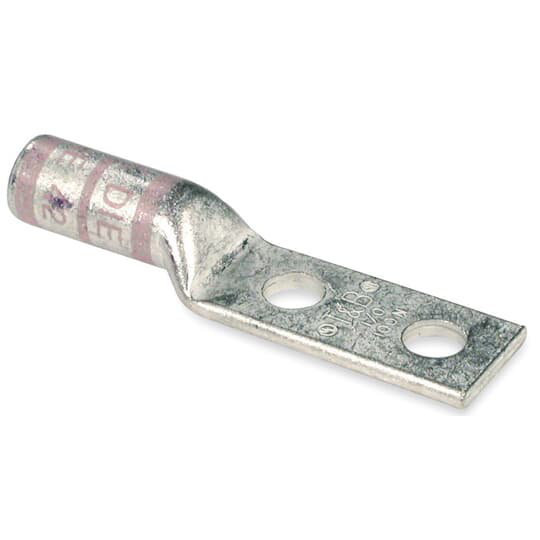

ABB 60273 Color-Keyed 60273 2-Hole Compression Lug 500 kcmil

Product Description

The ABB compression lug 60273 is designed for reliable electrical connections. This product is a 2-hole, non-insulated compression lug suitable for aluminum and copper conductors up to 500 kcmil. It features a long barrel design allowing for strong mechanical connections. The die code is 99H and it supports voltages up to 35 kV. This lug is ideal for applications in residential and commercial electrical systems.

• Material: Aluminum
• Stud Size: 1/2 inch
• Voltage Rating: 35 kV

Product Highlights

This lug is engineered for durability and effectiveness, providing a clean, secure connection for wiring tasks. It is UL and CSA certified for safety and reliability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Type: 2-Hole Non-Insulated
• Color: Pink
• Material: Aluminum
• Stud Size: 1/2 inch
• Conductor Size: 500 kcmil
• Overall Length: 6.7 inches
• Barrel Diameter: 1.28 inches
• Tongue Size: 3 inches long x 1.79 inches wide x 0.38 inches thick
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 35 kV
• Die Code: 99H
• Standards/Approvals: CSA Certified, UL File No. E9809
