Product Description

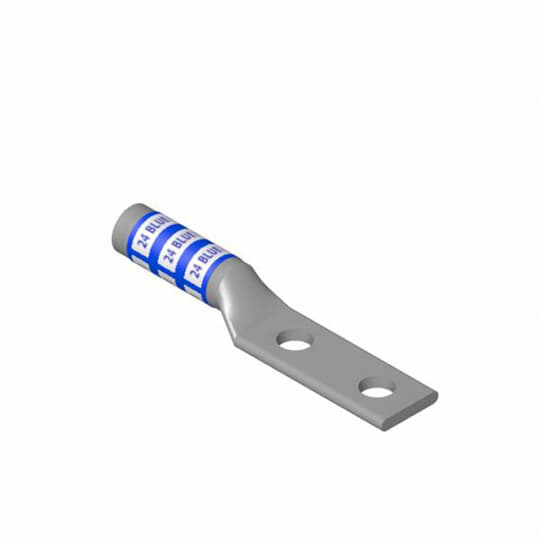

The ABB 60269 Thomas & Betts 2-Bolt Compression Connector is designed for reliable wire connections in a range of applications. This non-insulated aluminum connector accommodates conductor sizes of four hundred kcmil. It features a long barrel and blind end design, suitable for installation using a half-inch bolt. This connector is ideal for use in environments where high conductivity and durability are essential.
- Designed for aluminum and copper conductors
- Approved for use up to thirty-five kVAC
- Tin plated for enhanced corrosion resistance
Product Highlights
This 2-bolt compression lug is a key component for connecting wires in electrical systems. It is UL certified, ensuring compliance with strict safety standards.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Material: Aluminum
-
Voltage Rating: 35 kVAC
-
Stud Size: 1/2 in
-
Conductor Size: 400 kcmil
-
Temperature Rating: 90 deg C
-
Die Code: 94H
-
Country of Origin: MX
-
Overall Length: 6.7 in
-
Barrel Type: Blind End/Long
-
Tongue Type: Straight
-
Specifications: 1-3/4 in Hole Spacing
