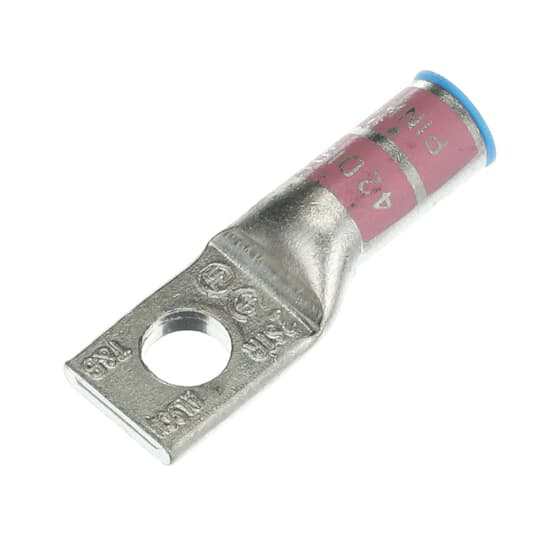

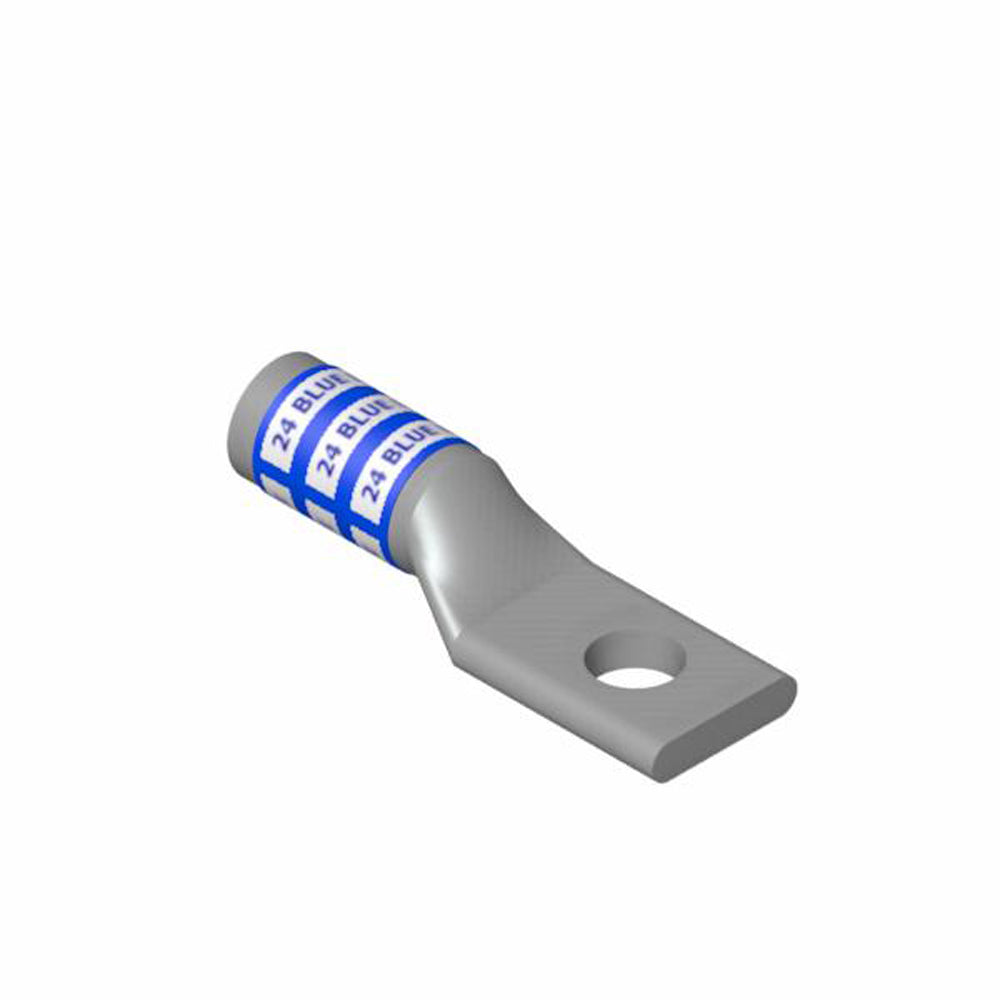

ABB 60118-TB 1-Bolt Compression Connector

Product Description

The ABB 60118-TB is a compression connector designed for aluminum and copper conductors. This one-hole non-insulated compression lug is engineered for a secure and reliable electrical connection. It is suitable for use with two AWG wire and has a tin-plated finish for improved conductivity and corrosion resistance.

• Suitable for 600 Volt and up to 35 kV applications
• Die code 42H ensures compatibility with the correct installation tools
• Constructed from durable aluminum for long-term performance

Product Highlights

This connector provides a robust and effective solution for electrical installations, ensuring a low-resistance connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 60118-TB

Technical Specifications

• Material: Aluminum
• Conductor Size: 2 AWG
• Die Code: 42H
• Voltage Rating: 35 kV
• Temperature Rating: 90 deg C
• Stud Size: 3/8 in
• Overall Length: 2.09 in
• Width: 2-7/8 in
• Height: 2-1/2 in
• Barrel Size: 0.51 in Dia
• Color: Pink
