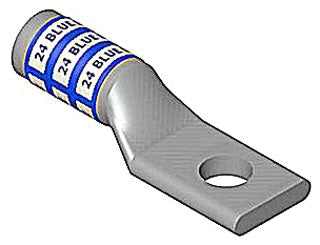

Abb 60109-TB 6 Awg Single-hole Al-cu Lug Terminal Block

Product Description

The ABB 60109-TB is a single-hole aluminum-copper (AL-CU) compression lug terminal block rated for 6 AWG conductors. It is designed for use in electrical panel and distribution applications where reliable, code-compliant termination of both aluminum and copper conductors is required. The grey housing provides standard identification in terminal block assemblies. Licensed electricians and panel builders typically install this lug in commercial and residential electrical enclosures, switchgear, and distribution boards.

This lug terminal block is suited for electrical distribution panels, junction boxes, and control enclosures where 6 AWG wiring is terminated. Its AL-CU rating makes it appropriate for installations that involve aluminum feeders or mixed-metal conductor environments, which are common in commercial electrical systems and utility metering applications. The single-hole mounting configuration simplifies installation in standard terminal block rail assemblies.

Key Features

• Rated for 6 AWG conductors in both aluminum and copper (AL-CU)
• Single-hole mounting configuration for straightforward rail installation
• Grey color coding for standard terminal block identification
• AL-CU dual-rated construction supports mixed-metal wiring systems
• Compact form factor suitable for panel and enclosure installations

Compatibility

Designed as an OEM-style replacement and standard fitment lug terminal block for 6 AWG AL-CU wiring applications in residential and commercial electrical distribution assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before installing or replacing any terminal block lug. Use properly rated compression tooling to ensure a secure, code-compliant crimp on the conductor. Do not intermix conductor sizes beyond the rated 6 AWG specification for this lug.

Technical Specifications

• Conductor Size: 6 AWG
• Conductor Compatibility: Aluminum and Copper (AL-CU)
• Mounting Type: Single-Hole
• Color: Grey
• Package Dimensions: 12.5 inches x 6.4 inches x 4 inches
• Weight: 1 pound
• UPC: 78621060109

Standard Information

• Brand: ABB
• Manufacturer Part Number: 60109-TB
