Abb 60104-TB Al-cu Lug 80 Awg Single Hole Blue

Product Description

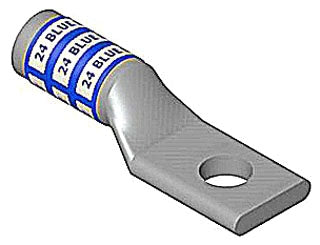

The ABB 60104-TB is a single-hole aluminum-copper (Al-Cu) compression lug designed for terminating large-gauge conductors up to 80 AWG in electrical distribution and power wiring applications. Built to accept both aluminum and copper conductors, this lug eliminates the need to stock separate termination hardware for mixed-wiring jobs. The blue color coding aids in quick visual identification during installation and inspection. At 8.75 pounds, this is a robust, industrial-grade termination device suited for licensed electricians working on commercial or industrial panelboard, switchgear, or service entrance equipment.

This lug is intended for use in heavy electrical installations where large-gauge conductors require a secure, code-compliant termination point. Single-hole mounting makes it compatible with standard bus bar configurations and equipment terminals found in commercial and industrial distribution equipment. It is a practical choice for service entrance work, main distribution panels, and equipment terminations where both aluminum and copper conductors may be present on the same project.

Key Features

• Accepts both aluminum and copper conductors — eliminates dual lug inventory on mixed-wiring jobs
• Single-hole mounting for compatibility with standard bus bar and equipment terminal configurations
• Blue color coding for fast visual identification during installation and inspection
• Rated for conductors up to 80 AWG for heavy-duty power termination applications
• Robust construction at 8.75 pounds for industrial-grade reliability

Compatibility

Designed as an OEM-style Al-Cu compression lug for heavy electrical distribution equipment requiring single-hole termination of large-gauge conductors up to 80 AWG.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lockout/tagout all circuits before installing or replacing lugs on any panelboard, switchgear, or service entrance equipment. Use the correct compression tool and die set rated for the conductor size and lug type to ensure a gas-tight, low-resistance connection. Inspect conductor stranding and insulation condition before terminating.

Technical Specifications

• Conductor Compatibility: Aluminum and Copper (Al-Cu)
• Maximum Conductor Size: 80 AWG
• Mounting Type: Single Hole
• Color Code: Blue
• Length: 12.2 inches
• Width: 6.0 inches
• Height: 3.4 inches
• Weight: 8.75 pounds
• UPC: 78621060104

Standard Information

• Brand: ABB
• Manufacturer Part Number: 60104-TB
