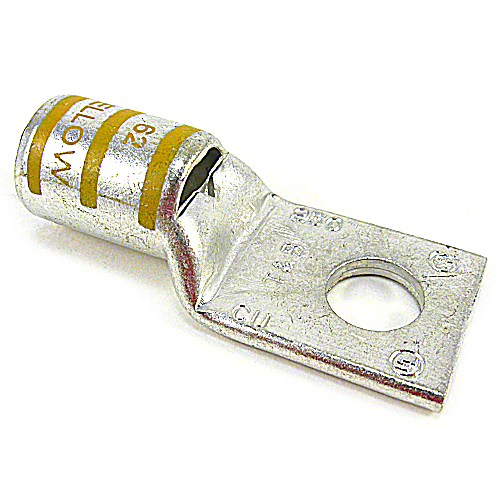

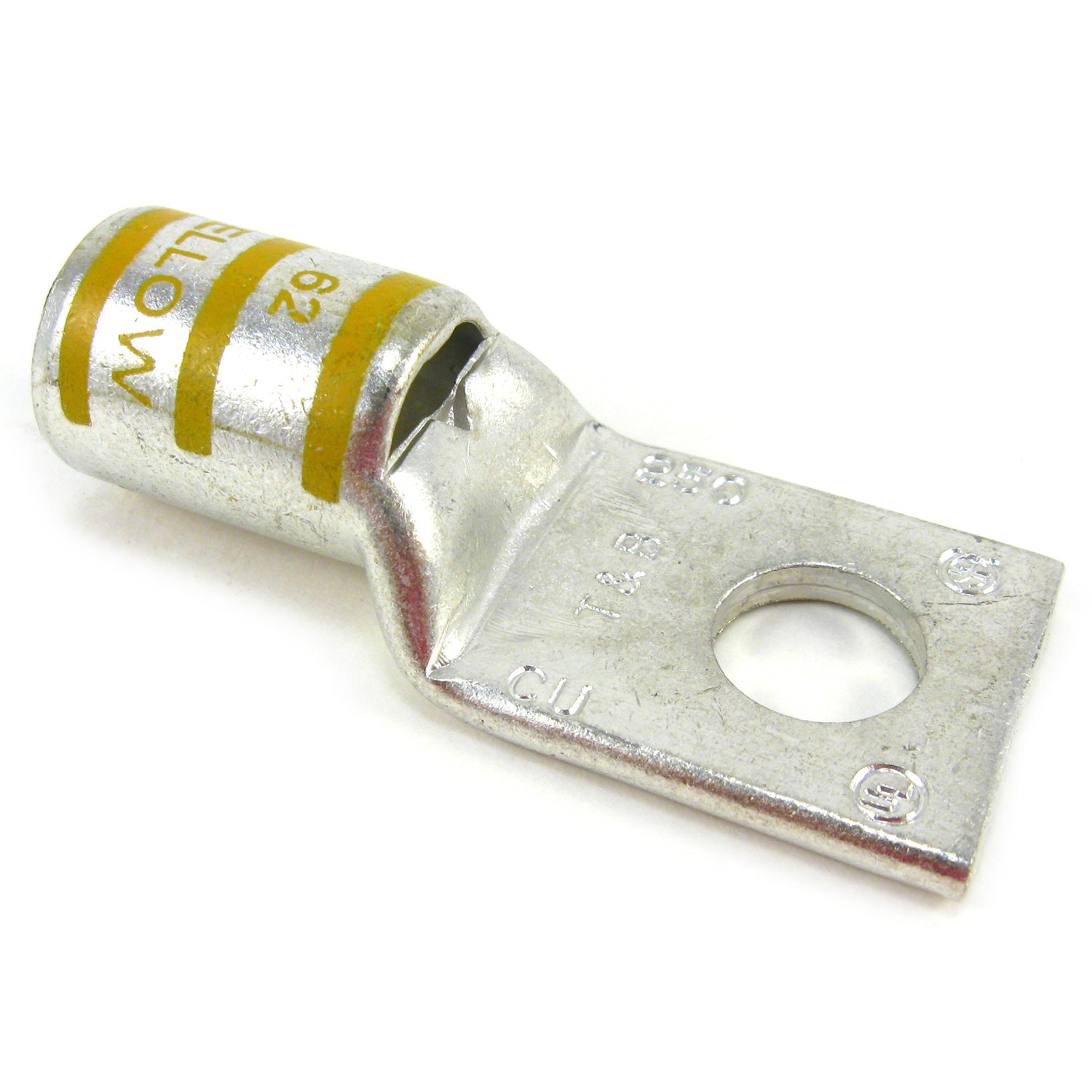

ABB 58163 Thomas & Betts 1-Hole Copper Lug - 4/0 Weld, 3/8 Bolt

Product Description

The ABB 58163 is a copper 1-hole lug designed for reliable electrical connections. Ideal for wire termination, it accommodates wire sizes of 4/0 AWG and features a 3/8-inch bolt size. The lug is suitable for applications up to 35 kV and has a tin-plated finish to enhance conductivity and resist corrosion.

• Application for 4/0 AWG wire size
• Constructed from copper for optimal conductivity
• Compatible with standard barrel connectors

Product Highlights

This lug features a peep hole for easy installation and is color-coded for identification. It ensures a strong and reliable electrical connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Material: Copper
• Wire Size: 4/0 AWG
• Max Voltage: 35 kV
• Barrel Type: Standard, Straight
• Stud Size: 3/8 in
• Mounting Hole Size: 0.406 in
• Overall Length: 2.38 in
• Barrel Diameter: 0.79 in
• Die Code: 62
• Standards: CSA Certified, UL File No. E9809
