ABB 54909BE Thomas & Betts Copper 1-Hole Lug - Long Barrel - 1/0AWG, 3/8bolt

Product Description

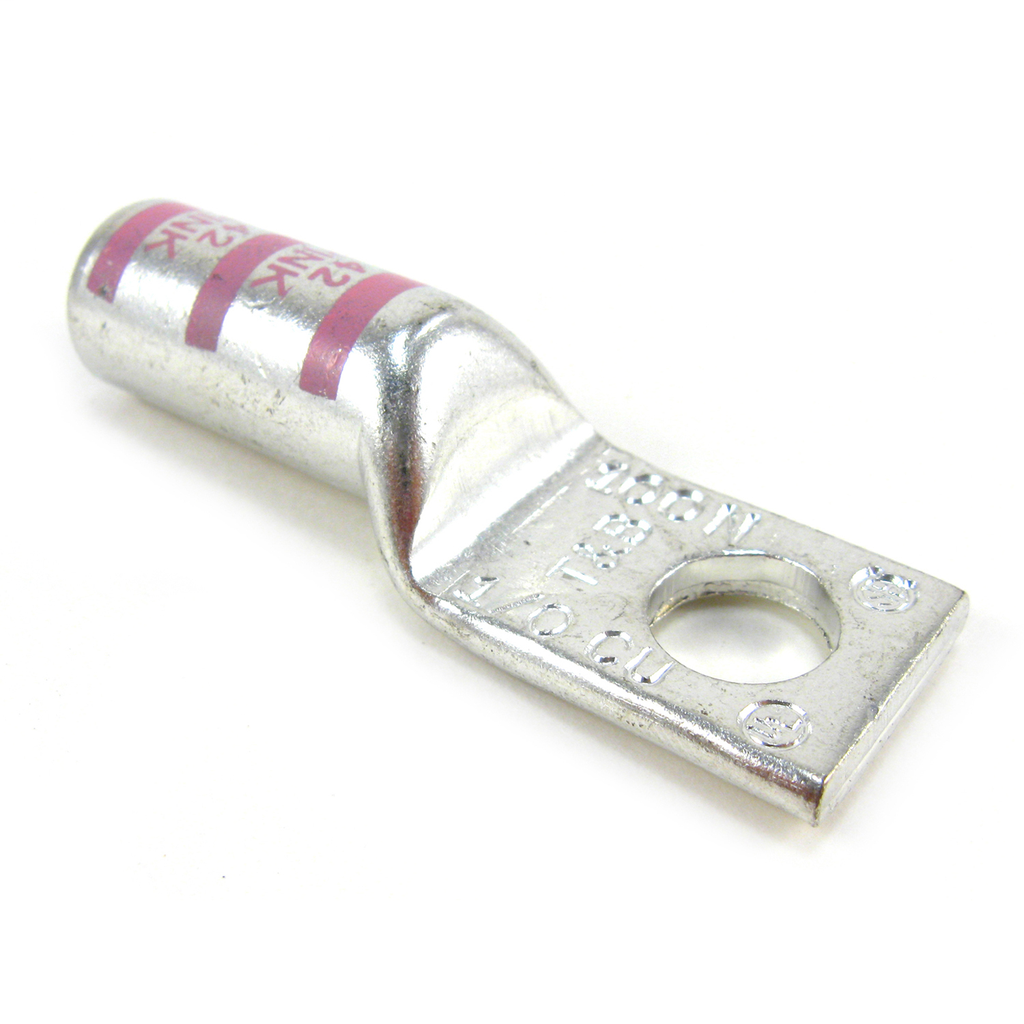

The ABB 54909BE is a copper compression lug designed for reliable electrical connections. With a one-hole configuration and a long barrel design, it supports wire sizes up to 1/0 AWG and accommodates a 3/8-inch bolt size. This product is suitable for high voltage applications, rated at a maximum of thirty-five kilovolts.

• Material: Copper with tin plating for conductivity
• Die code: 42, consistent with T&B Color-Keyed connectors
• Designed for easy installation and secure connections

Product Highlights

This lug is ideal for use in various electrical wiring applications, enhancing connection reliability without insulation, making it a preferred choice in many installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 54909BE
• Conductor Size: 1/0 AWG
• Voltage Rating: 35 kV
• Die Code: 42
• Stud Size: 3/8 in
• Overall Length: 2.23 in
• Barrel Diameter: 0.52 in
• Tongue Size: 0.93 in L x 0.75 in W x 0.13 in THK
