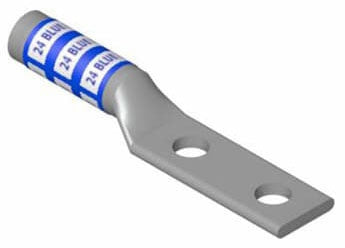

ABB 54878BE T&B 2 Hole Comp Lug 600MCM Copper

Product Description

The ABB 54878BE T&B 2 Hole Compression Lug is designed for use with 600 kcmil copper conductors. This non-insulated compression lug provides reliable connectivity in electrical applications.

• Compatible with a variety of compression tools.
• Constructed from high conductivity copper.
• Features a tin plated finish for improved performance.

Product Highlights

This lug utilizes a Color-Keyed compression system, allowing for a correct crimp onto the conductor. It provides a secure connection while reducing installation costs.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Type: 2-Hole Non-Insulated

Technical Specifications

• Application: For providing a high degree of reliability in electrical wiring
• Barrel Size: 1.2 in Dia
• Color: Green
• Conductor Size: 600 kcmil
• Conductor Type: Copper
• Die Code: 94
• Mounting Hole Size: 0.531 in
• Overall Length: 5.83 in
• Standards/Approvals: CSA C22.2 File No. 65/04, UL 486A/467 File No. E9809
• Voltage Rating: 35 kV
• Tongue Size: 3 in L x 1.75 in W x 0.24 in THK
• Tongue Type: Straight
